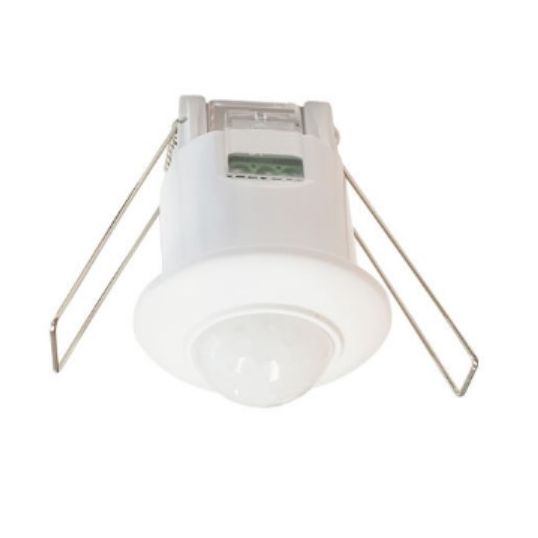

Matelec PIR Motion Sensor Mini Flush Ceiling Mount 360deg IP20 White
Description
PIR Motion Sensor, 220-240 Volt, LED: 300 Watt/Fluorescent: 400 Watt/Incandescent: 800 Watt, 50 Hz, 6 mtr Sensing Range, 360 deg Sensing Beam, 10 sec-15 min Response Time, 2-2000 lux, Manual Override Switching Function, IP20, Flush/Ceiling Mounting, White/Black, 50 mm Diameter x 67 mm Height, 42 mm Cut-Out
Key Specifications
| Barcode (EAN-13) |
9338999003780
|
|---|---|
| SKU |
MTLFMS-12075
|
| Brand |
Matelec
|
| Product Type |
Sensors
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121800 |
| UOM | EA |
| Vendor Product | FMS-12075 |
| Colour | White/Black |
| Dimensions | 50 mm Diameter x 67 mm Height |
| IP Rating | IP20 |
| Frequency | 50 Hz |
| Lux | 2-2000 lux |
| Mounting Method | Flush/Ceiling |
| Please Note | 42 mm Cut-Out |
| Response Time | 10 sec-15 min |
| Sensing Beam | 360 deg |
| Switching Function | Manual Override |
| Sensing Range | 6 mtr |
| Voltage | 220-240 Volt |
| Wattage | LED: 300 Watt/Fluorescent: 400 Watt/Incandescent: 800 Watt |
