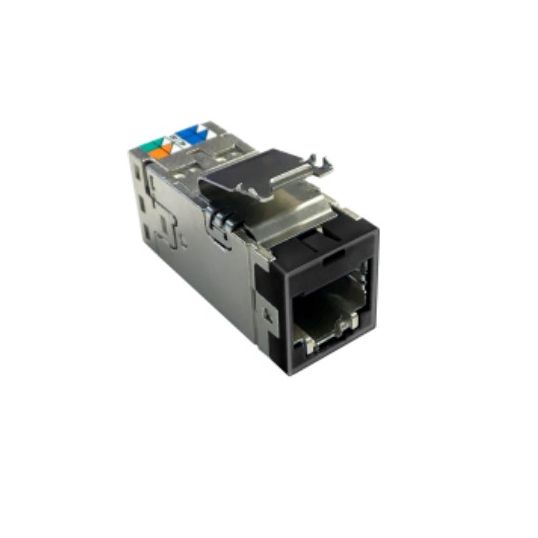

Netconnect AMP-TWIST SLX Series Modular Jack Cat6A Shielded 4 Pair without Dust Cover T568A/B Polycarbonate Black
Description
Key Specifications
SKU |
NCO2153449-2
|
---|---|
Brand |
Netconnect
|
Range Name |
KJ Series
|
Technical Specifications
Additional Information
Standard Pack Size | 24 |
---|---|
UNSPSC Class | 43223300 |
UOM | EA |
Vendor Product | 2153449-2 |
Cable Type | Cat6 Shielded |
Colour | Black |
Conductor Size | 26-22 AWG/Stranded: 26-24 AWG |
Contact Base Material | Beryllium Copper |
Contact Plating Material | Gold |
Depth | 36.8mm |
Flammability | UL 94 V-0 |
Height | 16.13mm |
Housing Material | Polycarbonate/Zamak |
Outlet Type | Standard |
Temperature | -10 to 60 deg C |
Termination Type | IDC |
Width | 14.44mm |
Wiring Scheme | T568A/B |
