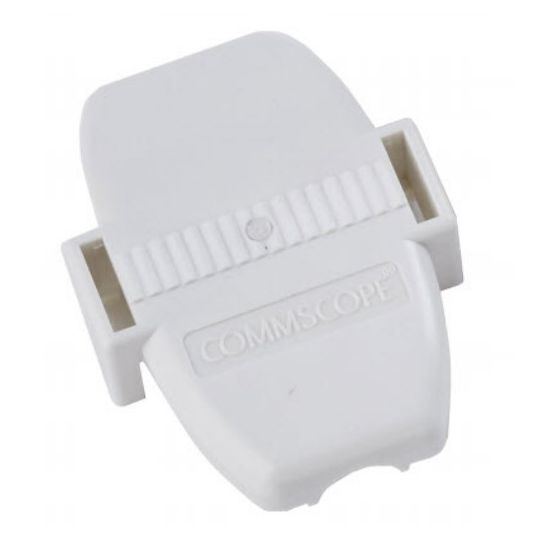

Netconnect Ceiling Connector Assembly without Cordage For Cat5e/6/6A UTP Patch Cord Cut in Half

$Netconnect\Netconnect_760234921.jpg$

Description

Connector Assembly, 1.5 Amp, Solid, Stranded, Solid: 26-22 AWG, Stranded: 26-22 AWG, 100 mOhm Contact Resistance, 500 MOhm Insulation Resistance, Contact-to-Contact: 1000 Volt AC at 60 Hz Dielectric Withstand, 750 Times Plug Insertion life, 44.645 kg/mtr Plug Retention Force, Flammability: UL 94 V-0, CAT 6 , 6A U/UTP (Unshielded) Cable, Precious Metals Contact Plating, Copper Alloy, Thermoplastic, Stainless Steel Contact Spring, Electrical White,-10 to 60 deg C, 27.178 mm Height, 35.56 mm Width, 51.816 mm Depth

Key Specifications

SKU	NCO760234921
Brand	Netconnect
Product Type	Connector Assemblies

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Perfect solution for connected devices in the ceiling: IP cameras, Wi-Fi access points and in building wireless systems, LED lighting and sound masking systems For installation in difficult-to-access areas Provides a high-quality cable interconnection, available as a standalone unit or pre-terminated to an RJ45 plug Can be ordered individually or with a UTP pigtail, in plenum or low smoke zero halogen (LSZH) options Category 5e, 6 and 6A UTP can be terminated in the ceiling connector
Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	760234921
Conductor Size	26-22 AWG
Cable Type	Cat 6/6A U/UTP Unshielded
Colour	White
Conductor Type	Solid/Stranded
Contact Resistance	100 mOhm
Current	1.5 Amp
Depth	51.816 mm
Dielectric Withstand Voltage	1000 Volt AC
Flammability	UL 94V-0
Insulation Resistance	500 MOhm
Height	27.178 mm
Material	Copper Alloy/Thermoplastic/Stainless Steel Contact Spring
Plug Retention Force	44.645 kg/m
Plug Insertion Life	750 Times
Temperature	10 to 60 deg C
Width	35.56 mm
