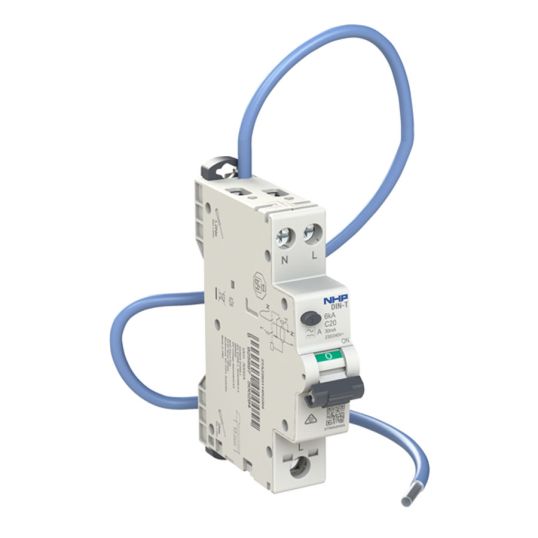

NHP DIN-T RCBO Type A 240 VAC 16 Amp 6 kA 1 Pole + N 30 mA IP40 1 Module 18 mm

$NHP_DIN-T\NHP_DIN-T_DTR6S.JPG$

Description

Longbody 1 Pole RCBO suitable for new installation or for retrofit in panelboards. New blue earth leakage trip indicator (ETI), Red/green contact position indicator (CPI) that is independent of the toggle position. Type F in 30 mA for single phase complex loads. Suits standard 3 Pole busbar chassis due to pigtail wire for neutral line side connection. Additional safety feature of earth reference lead ensure operation in case of loss of neutral connections. Fast installation utilising standard 18 mm pin type busbar comb onto the bottom terminals or quick install into Concept distribution panelboards.

Key Specifications

Barcode (EAN-13)	6925897500287
SKU	NHPDTR6S1630A
Brand	NHP DIN-T

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Standard AS/NZS 61009 Approval No NSW24576 and RCM Earth leakage protection Type A Shunt, UVT and Aux compatible Pad lockable handle and LOCKDIN compatible Switched neutral
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	DTR6S1630A
Colour	Grey
Connection Type	Fork/Pin
Current	16 Amp
Depth	75 mm
Frequency	50/60 Hz
Interrupt Capacity	6 kA
IP Rating	IP40
Modules	1 Module 18 mm
Number Of Poles	1 Pole
Mounting Method	DIN Rail
Height	86 mm
Temperature	-25 to 55 deg C
Terminal Connection	1-35 sq-mm
Trip Characteristic	C Curve
Trip Sensitivity	30 mA
Width	18 mm
Voltage	240 Volt AC
