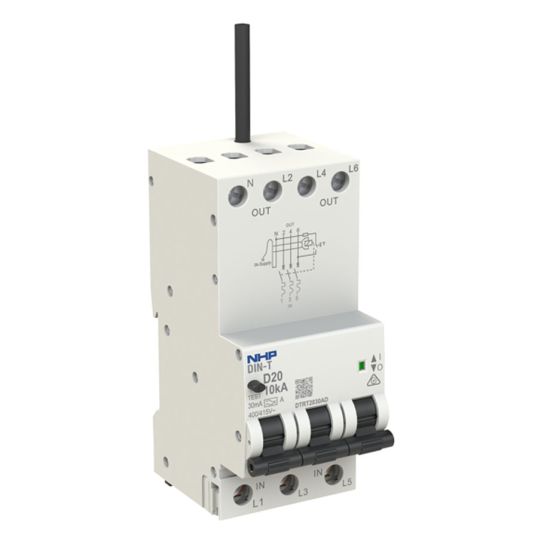

NHP DIN-T Residual Current Breaker RCBO 10kA 3 Pole and Neutral 20A D Curve 30mA Type A (Longbody)

$NHP_DIN-T\NHP_DIN-T_RCBO_3P_D_CURVE_Longbody.JPG$

Description

Residual Current Breaker with Overcurrent Protection (RCBO), 20 Amp, 415 Volt, 3 Pole + N, 30 mA, 10 kA, 3 Module, DIN Rail, 117.5 mm Height, 54 mm Width, 77.1 mm Depth

Key Specifications

Barcode (EAN-13)	9321807006769
SKU	NHPDTRT2030AD
Brand	NHP DIN-T

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	DTRT2030AD
Connection Type	Pin
Frequency	50/60 Hz
IP Rating	IP40
Current	20 Amp
Interrupt Capacity	10 kA
Depth	77.1 mm
Modules	3 Module
Height	117.5 mm
Mounting Method	DIN Rail
Number Of Poles	3 Pole
Temperature	5 to 55 deg C
Trip Characteristic	D Curve
Trip Sensitivity	30 mA
Voltage	415 Volt
Width	54 mm
