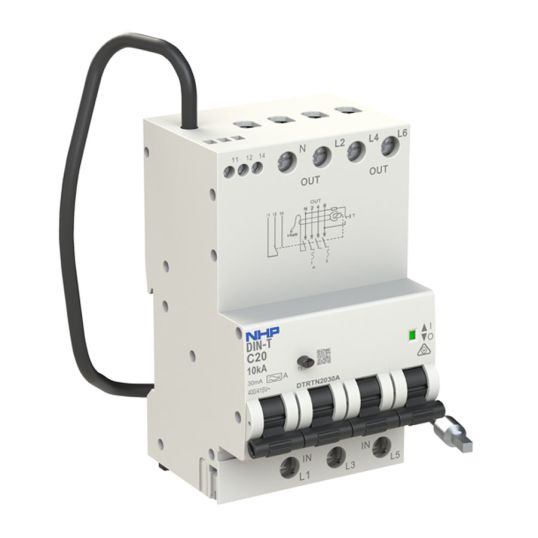

NHP DIN-T RCBO Type A 415 VAC 63 Amp 10 kA 3 Pole + N 30 mA IP40 4 Module 72 mm

$NHP_DIN-T\NHP_DIN-T_RCBO_3P_10kA_C-Curve_72mm.JPG$

Description

Longbody 3P+N RCBO with switched neutral in only 72 mm width suitable for new installation or for retrofit in panelboards. Red/green contact position indicator (CPI) that is independent of the toggle position. Suits standard 3P chassis in Concept Panelboards due to line neutral pigtail and cavity on the 4th pole. Also integrated standard auxiliary changeover switch for remote position indication/control.

Key Specifications

Barcode (EAN-13)	6941593495023
SKU	NHPDTRTN6330A
Brand	NHP DIN-T

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Standard AS/NZS 61009 Approval No NSW29308 and RCM Earth leakage protection Type A Switched neutral Built in C/O Auxiliary contact Dummy terminal to suit standard 3P busbar chassis
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	DTRTN6330A
Colour	Grey
Connection Type	Fork/Pin
Current	63 Amp
Depth	77.1 mm
Interrupt Capacity	10 kA
Modules	4 Module 72 mm
Frequency	50/60 Hz
IP Rating	IP40
Height	117.5 mm
Number Of Poles	3 Pole
Mounting Method	DIN Rail
Please Note	Longbody
Temperature	-5 to 55 deg C
Terminal Connection	1-25 sq-mm
Trip Characteristic	C Curve
Trip Sensitivity	30 mA
Voltage	415 Volt AC
Width	72 mm
