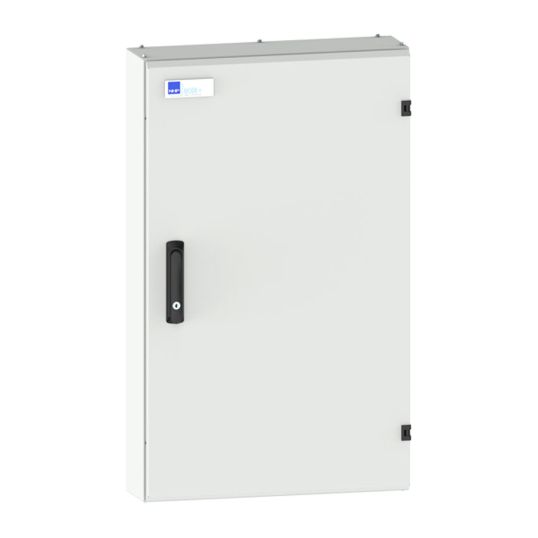

NHP Distribution Panelboard 36P 250A 415V 864x530x153mm

$NHP\NHP_MD6PO36LG.JPG$

Description

The MOD6+ One Panelboard offers a core range of essential features, including a IP40 compact enclosure with a neutral finish to blend in. Designed to suit MOD6 and MOD6+ MCBs and RCBOs

Key Specifications

SKU	NHPMD6PO36LG
Brand	NHP
Range Name	MOD6+ One
Product Type	Distribution Panelboards

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	MD6PO36LG
Colour	Grey
Current	250 Amp
Dimensions	864 mm Height x 530 mm Width x 153 mm Depth
Door Type	Keylock
IP Rating	IP40
Material	Steel
Mounting Method	DIN Rail/Surface
Number Of Poles	36P
Voltage	415 Volt
