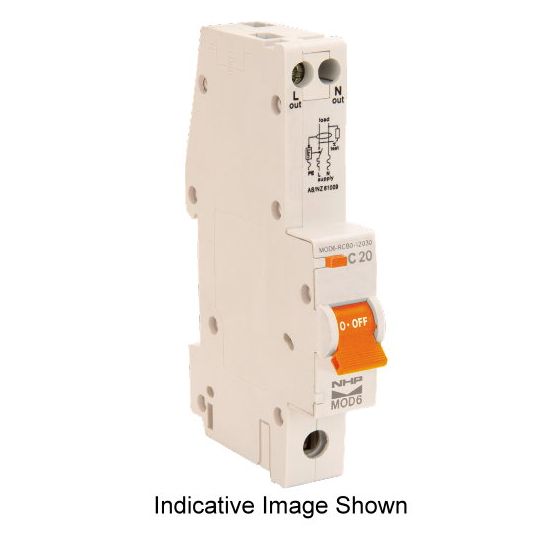

NHP Combination RCD Circuit Breaker RCBO 1P+ N 20 Amp 240V AC 6 kA 2Module 36mm DIN 35 Rail

Description

Combination RCD Circuit Breaker RCBO, 20 Amp, 240 Volt AC, 50/60 Hz, Interrupt Capacity: 6 kA, Trip Sensitivity: 30 mA, Number of Poles: 1P + N, Number of Modules: 2, 36mm Module Width, Trip Characteristic: C Curve, 1-16 mm/1-25 mm Flex/1-25 mm/1-35 mm Rigid Terminal Connection, Pin, Fork, IP40, IP20, DIN 35mm Rail,-5 to 55 deg C, 86mm Height, 36mm Width, 76mm Depth

Key Specifications

Barcode (EAN-13)	5413656910664
SKU	NHPMOD6RCBO22030
Brand	NHP
Range Name	MOD6
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Type AC or Type A RCD with switched neutral 30mA sensitivity general personnel protection applications 10mA sensitivity option for higher risk applications C trip curve for general light and power applications Fast connection pin/fork busbar comb Suits pole-covers and loadcentres
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	MOD6RCBO22030
Current	20 Amp
Connection Type	Pin/ Fork
Height	86 mm
Depth	76 mm
Modules	2 Module 36 mm
Frequency	50/60 Hz
Interrupt Capacity	6 kA
Mounting Method	DIN Rail
IP Rating	IP40/20
Number Of Poles	1 Pole
Temperature	-5 to 55 deg C
Trip Characteristic	C Curve
Terminal Connection	1-16 sq-mm / 1-25 sq-mm Flex / 1-25 sq-mm / 1-35 sq-mm Rigid
Trip Sensitivity	30 mA
Voltage	240 Volt
Width	36 mm
