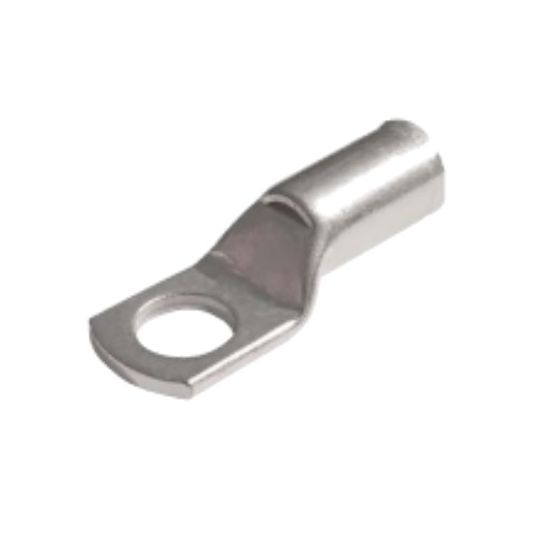

Noremak Crimp Lug Bell Mouth Copper 35mm M12 Stud 51mm OAL
Description
Crimp Lug, Bell Mouth, Copper, 35 mm Conductor, M12 Stud, 22mm Barrel, 51mm Overall Length, 1 Hole, Annealed Copper Body, Annealed Copper Conductor, Tin Electroplated Finish, -55 to 155 deg C, Number of Strands: 280 x 0.41, 8.4mm Inside Diameter, 20mm Lug Width, 9.2mm A/F Hex Die, 205 MPa
Key Specifications
| SKU |
NORCL35-12BM
|
|---|---|
| Brand |
Noremak
|
| Product Type |
Lugs Bell Mouth
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | CL35-12BM |
| A-F Hex Die | 9.2 mm |
| Barrel Length | 22 mm |
| Body Material | Annealed Copper |
| Conductive Material | Annealed Copper |
| Conductor Size | 35 mm |
| Finish | Tin Electroplated |
| Inside Diameter | 8.4 mm |
| Lug Width | 20 mm |
| Number of Holes | 1 |
| Number of Strands | 280 x 0.41 |
| Overall Length | 51 mm |
| Stud Size | M12 Stud |
| Temperature | -55 to 155 deg C |
| Tensile Strength | 205 MPa |
