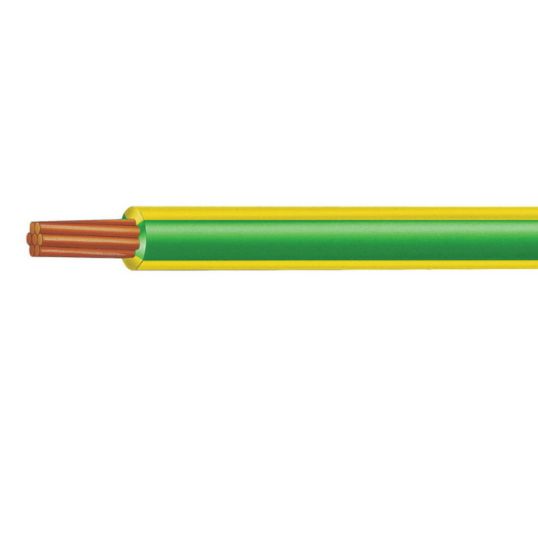

Olex 70mm Building Wire Green/Yellow 1mtr

Description

Building Wire, 70 mm, Compacted Copper, 0.6-1 kV, 19/2.14 mm Strands, 12.4 mm Overall Diameter, 1 mtr Length, 1.4 mm Insulation Thickness, 4.9 kN Pulling Tension, DC: 0.268 Ohm/km AC: 0.327 Ohm/km Conductor Resistance, 4.4 MOhm/km Insulation Resistance, V-90 PVC Insulation, Green/Yellow Insulation, 90 deg C, AS/NZS 1125 AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	99319215251225
SKU	OLX19/214BWEWA9
Brand	Olex
Product Type	Building Wire

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121614
UOM	MTR
Vendor Product	BAAC20AA001AAHN
Conductor Type	Compacted Copper
Conductor Resistance	DC: 0.268 Ohm/km AC: 0.327 Ohm/km
Insulation Colour	Green/Yellow
Insulation Resistance	4.4 MOhm/km
Insulation Thickness	1.4 mm
Insulation Material	V-90 PVC
Overall Diameter	12.4 mm
Pulling Tension	4.9 kN
Stranding	19/2.14 mm
Standards	AS/NZS 1125 AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
Conductor Size	70 mm
