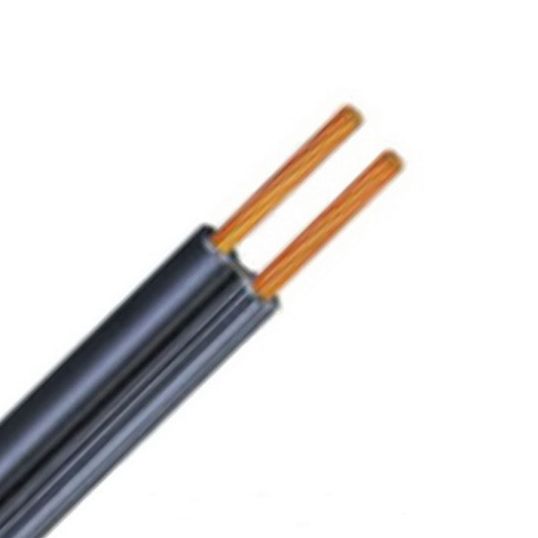

Olex Flexible Wire 2 Core Figure 8 2.5mm 250/440V Plain Annealed Copper PVC/PVC Grey/Black
Description
Flexible Cable Figure 8, 2.5 mm, Annealed Copper, 250-440 Volt, 25 Amp, 2 Core, 76/0.2 mm Strands, 4 mm x 9.35 mm Overall Diameter, DC: 8 Ohm/km Conductor Resistance, PVC Insulation, PVC Sheath, Grey/Black Sheath
Key Specifications
| Barcode (EAN-13) |
9319215351649
|
|---|---|
| SKU |
OLXJSF2.5GLBK1
|
| Brand |
Olex
|
| Product Type |
Flexible Cable Figure 8
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | JSF2.5GLBK1 |
| Conductor Resistance | DC: 8 Ohm/km |
| Conductor Size | 2.5 mm |
| Conductor Type | Annealed Copper |
| Current | 25 Amp |
| Insulation Material | PVC |
| Number of Cores | 2 Core |
| Overall Diameter | 4 mm x 9.35 mm |
| Sheath Colour | Grey/Black |
| Sheath Material | PVC |
| Stranding | 76/0.2 mm |
| Voltage | 250-440 Volt |
