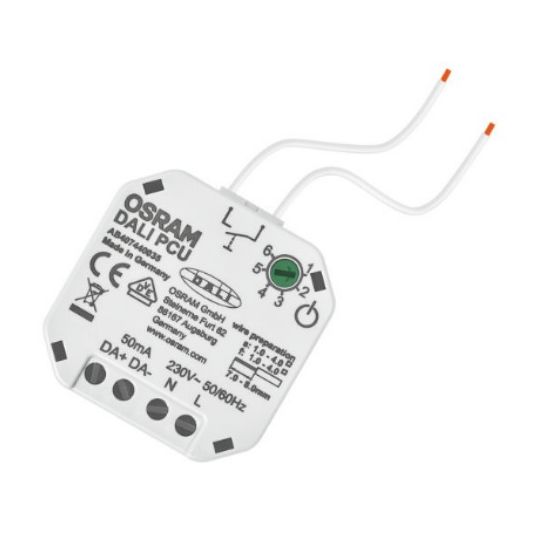

Osram Dimming Controller 2W 230V IP20 Light Grey F/DALI PCU

Description

Dimming Controller, Input Voltage: 230 Volt, 2 Watt, 50/60 Hz, Dimmable, For Use With: DALI PCU, IP20, Light Grey, 0 to 40 deg C, 48 mm Length, 49 mm Width, 22 mm Height

Key Specifications

Barcode (EAN-13)	4052899955622
SKU	OSRDALIPCU
Brand	Osram
Product Type	Dimmers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Intuitive manual dimming and switching Individual setting of minimal brightness level Integrated DALI supply Up to four DALI PCU can be connected in parallel to set up multiple control points Automatic synchronization between the control points Combinable with standard presence and motion detectors with mains contact Behaviour after power failure configurable Length of the DALI control cable: up to 300 m For conference rooms, restaurants and shop lighting
Standard Pack Size	1
UNSPSC Class	39101900
UOM	EA
Vendor Product	4052899955622
Colour	Light Grey
Dimmable	Dimmable
For Use With	DALI PCU
Frequency	50/60 Hz
Height	22 mm
Input Voltage	230 Volt
IP Rating	IP20
Wattage	2 Watt
Temperature	0 to 40 deg C
Width	49 mm
