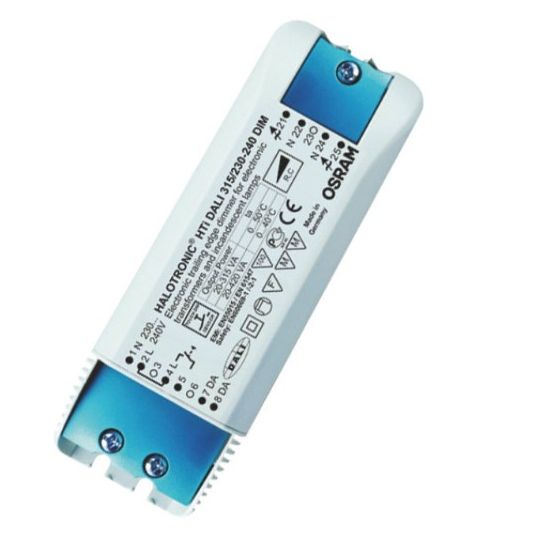

Osram Dimming Controller 315W 220-240V IP20 F/DALI LV Halogen LED

Description

Dimming Controller, Input Voltage: 220-240 Volt, 315 Watt, 50 Hz, Dimmable, For Use With: DALI LV Halogen LED, IP20, 0 to 45 deg C, 153 mm Length, 54 mm Width, 36 mm Height

Key Specifications

Barcode (EAN-13)	4008321957344
SKU	OSRHTIDALI315
Brand	Osram
Product Type	Dimmers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	DALI trailing-edge phase dimmer Dimming of high voltage halogen and incandescent lamps Dimming of many common dimmable line voltage LED lamps Dimming of electronic transformers Standby power consumption: <0.5 Watt DALI/Touch DIM control signal Short-circuit protection, overload protection, over temperature protection: electronically reversible RI suppression: to EN 55015 (A1: 2007) Line harmonics according to EN 61000-3-2 Safety: to EN 61347
Standard Pack Size	1
UNSPSC Class	39101900
UOM	EA
Vendor Product	4008321957344
Dimmable	Dimmable
For Use With	DALI LV Halogen LED
Frequency	50 Hz
Height	36mm
Input Voltage	220-240 Volt
IP Rating	IP20
Temperature	0 to 45 deg C
Wattage	315 Watt
Width	54mm
