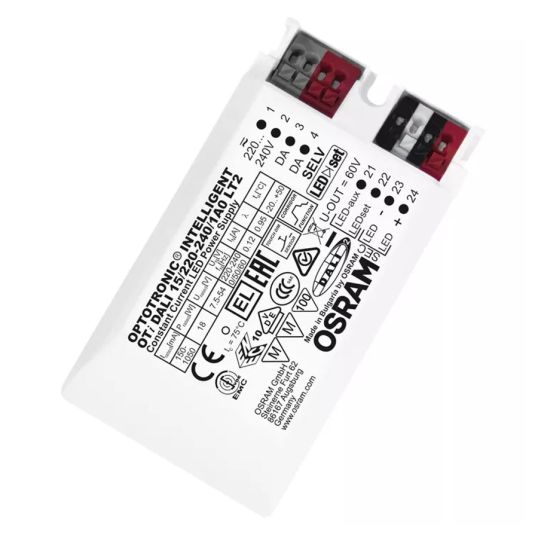

Osram DALI LED Power Supply 18W 220-240V Plastic IP20

chevron-left

Description

chevron-down
DALI LED Power Supply, Input Voltage: 220-240 Volt, Output Voltage: 7.5-54 Volt, 18 Watt, 150-1050 mA, 50/60 Hz, Non-Dimmable, IP20, Power Factor: 0.95, Plastic, -20 to 50 deg C, 95 mm Length, 53 mm Width, 30 mm Height

Key Specifications

chevron-down
Barcode (EAN-13)
4062172061766
SKU
OSROTIDALI15/1A0
Brand
Osram
Range Name
Optotronic
Product Type
Power Supplies

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Versatile DALI window driver due to flexible output characteristic
  • Very high efficiency and reliability
  • Protection of the system thanks to thermal management and Smart Control
  • High-quality dimming of 1 to 100% by amplitude dimming (OTi DALI 15)
  • Suitable for use in luminaries with flexible current setting (DALI, CLO, LEDset)
  • Suitable for indoor SELV installations
  • Suitable for luminaries of protection classes I and II
  • Suitable for downlights, spotlights and LED panels
Standard Pack Size 1
UNSPSC Class 39101900
UOM EA
Vendor Product 4062172061766
Current 150-1050 mA
Dimmable Non-Dimmable
Frequency 50/60 Hz
Height 30mm
Input Voltage 220-240 Volt
IP Rating IP20
Output Voltage 7.5-54 Volt
Power Factor 0.95
Temperature -20 to 50 deg C
Wattage 18 Watt
Width 53mm
