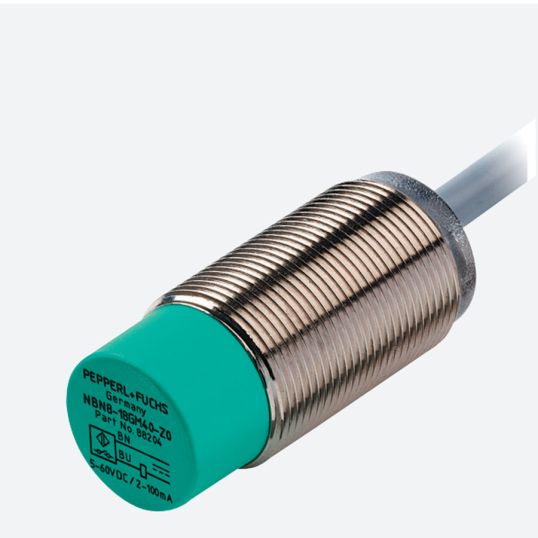

Pepperl+Fuchs Proximity Switch Inductive Sensing Unshielded Non-Flush 5-60V 1NO 2m L
Description
Proximity Switch Inductive Sensing Unshielded, 5-60 Volt Operating Voltage, 2-100 mA, 8 mm Sensing Range, Cable Connection, Normally Opened Configuration, LED, 2 mtr, Non-Flush Mounting, 303 Stainless Steel, -25 to 70 deg C, 18 mm Diameter, 40 mm Length
Key Specifications
| SKU |
P&FNCN8-18GM40-Z0
|
|---|---|
| Brand |
Pepperl+Fuchs
|
| Range Name |
VariKont
|
| Product Type |
Proximity Sensors
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | NCN8-18GM40-Z0 |
| Cable Size | 2 mtr |
| Connection Type | Cable |
| Current | 2-100 mA |
| Contact Configuration | Normally Opened |
| Diameter | 18 mm |
| Light Source | LED |
| Mounting Method | Non-Flush |
| Material | 303 Stainless Steel |
| Operating Voltage | 5-60 Volt |
| Sensing Range | 8 mm |
| Temperature | -25 to 70 deg C |
