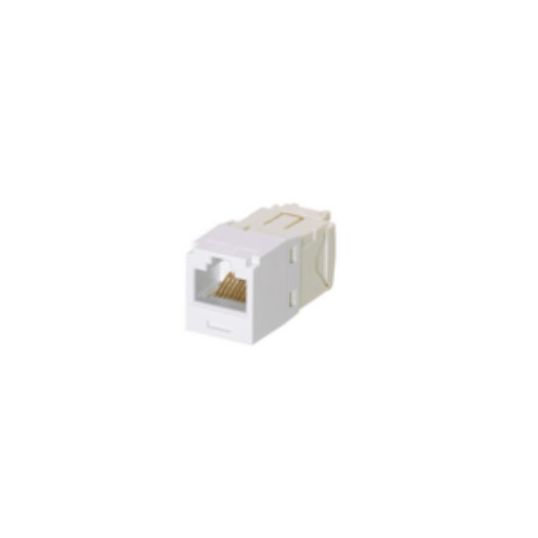

Panduit Mini-Com Pan-Net Outlet Mechanism Cat6 UTP RJ45 8 Pin T568A/B White
Description
Outlet Mechanism Cat6 UTP, 22-26 AWG, RJ45 Connector, Cat6 UTP Unshielded Cable, 8 Pins, Wiring Scheme: T568A/B, TG Style Termination, ABS Housing, Plated Phosphor Bronze Contact Base, White,-10 to 65 deg C, 38.1mm Length, 18mm Height, 15.7mm Width, 38.1mm Depth
Key Specifications
| Barcode (EAN-13) |
7498339553
|
|---|---|
| SKU |
PADCJ688TGWH
|
| Brand |
Panduit
|
| Range Name |
Mini-Com TX6 PLUS
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | CJ688TGWH |
| Cable Type | Cat6 UTP Unshielded |
| Colour | White |
| Conductor Size | 22-26 AWG |
| Connector | RJ45 |
| Contact Base Material | Plated Phosphor Bronze |
| Depth | 38.1mm |
| Height | 18mm |
| Housing Material | ABS |
| Number of Pins | 8 Pin |
| Temperature | -10 to 65 deg C |
| Termination Type | TG Style |
| Width | 15.7mm |
| Wiring Scheme | T568A/B |
