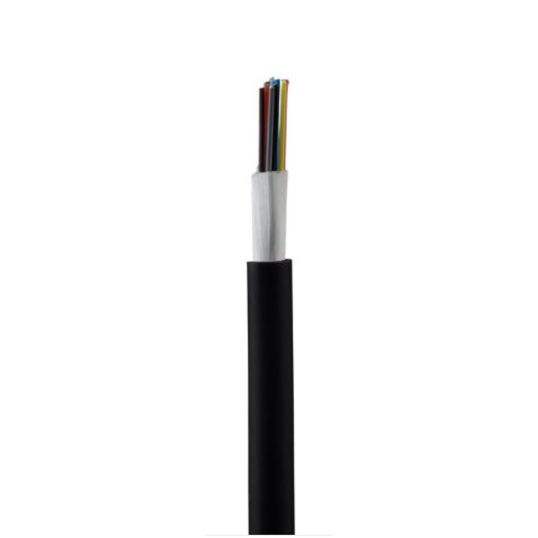

Panduit Opti-Core Indoor/Outdoor Fibre Optic Cable Tight Buffered 12 Fibre OS2 Singlemode 900um LSZH Black
Description
The Opti-Core Fibre Optic family of cables shall contain 4 to 72 optical fibres. The fibres shall be tight-buffered for easy termination with field-installable connectors. The cables shall be flame rated for use indoors, complying with UL standards for riser and IEC standards for Low Smoke/Zero Halogen (LSZH). The cables shall have UV resistant and water blocking properties for use in outdoor environments. The cables shall have options for single mode (OS2) or multimode fibres (OM3 and OM4) to support 10 Gb/s network transmission and beyond.
Key Specifications
| Barcode (EAN-13) |
7498385968
|
|---|---|
| SKU |
PADFLKL912
|
| Brand |
Panduit
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1000 |
| UNSPSC Class | 43223300 |
| UOM | MTR |
| Vendor Product | FLKL912 |
| Attenuation | 0.7 dB/km at 1310 Nm - 0.7 dB/km at 1550 Nm |
| Bend Radius | 132 mm During Installation/66 mm After Installation |
| Construction | Indoor-Outdoor Tight Buffered All-Dielectric |
| Fibre Core Diameter | 9/125 um |
| Fibre Count | 12 |
| Fibre Mode | Singlemode |
| Impact Resistance | 4.4 Nm |
| Fibre Type | OS2 |
| Outside Diameter | 6.6 mm |
| Sheath Colour | Aqua |
| Sheath Material | LSZH |
| Temperature | 20 to 60 deg C |
| Tensile Strength | 660 N Installation/200 N Operation |
| Strength Member | Fiberglass Reinforced Plastic |
| Tube Filling | Gel Filled |
| Tube Size | 250 um |
