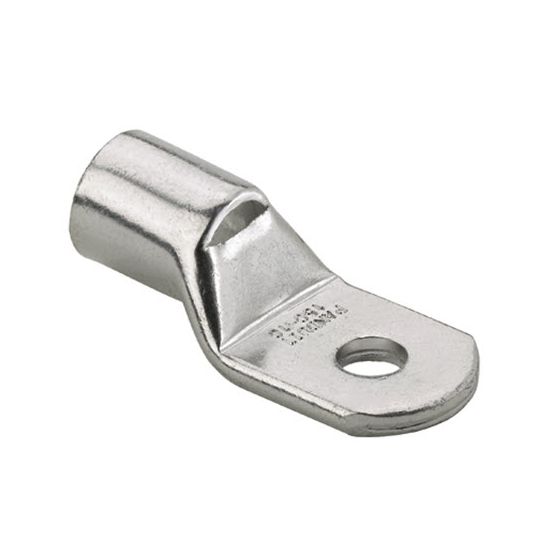

Panduit Crimp Lug Standard with Inspection Window Copper 16mm M6 Stud 34.5mm OAL

$Panduit\Panduit_Lug_1_Hole.jpg$

Description

The Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90 deg C.

Key Specifications

Barcode (EAN-13)	07498376933
SKU	PANLCMA16-6-C
Brand	Panduit

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	99.9% pure copper and tin plated to a nominal thickness of 320? in (8? m) to provide a high quality connection Inspection window for standard barrel lugs allows a visually verifiable, high quality crimp Rounded tongue for one hole lugs convenient for use in tight spaces Internally bevelled wire entry for fast and easy installation Product information marked on connector for easy selection and installation UL Listed or UL Recognized and CSA Certified with Metric Conductors allows specification to ensure safety and reliability Class 2r
Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	LCMA16-6-C
Barrel Length	14.5 mm
Barrel Type	Standard
Body Material	Copper
Conductive Material	Copper
Conductor Size	16 mm
Crimping Die	P24
Finish	Tin Plated
Inside Diameter	5.5 mm
Lug Length	16.8 mm
Lug Thickness	1.26 mm
Lug Width	13 mm
Number of Holes	1 Hole
Outside Diameter	7.2 mm
Overall Length	34.5 mm
Palm Type	Straight
Please Note	with Inspection Window
Stud Size	6 mm
Temperature	90 deg C
