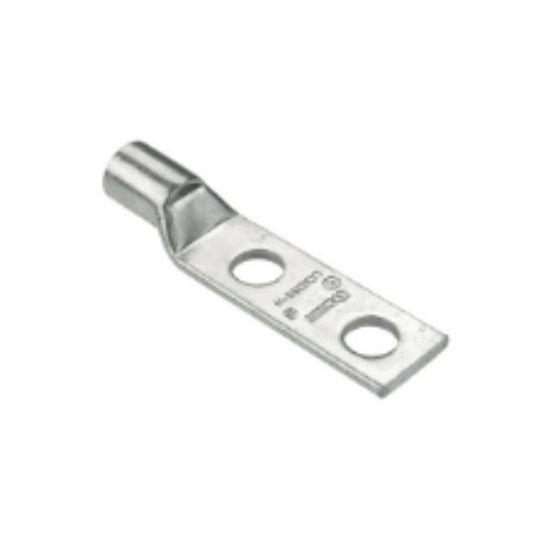

Panduit Crimp Lug Standard with Two Hole Inspection Window Copper 400mm M12 Stud 151.5mm OAL
Description
Crimp Lug, Standard with Two Hole Inspection Window Copper, 400 mm Conductor, M12 Stud, Stud Hole Spacing: 44.5 mm, Standard Barrel, Palm Type: Straight, 151.5 mm Overall Length, 2 Holes, Wire Strip Length: 46.3 mm, Copper Body, Copper Conductor, Tin Plated Finish, 90 deg C, Inside Diameter: 27 mm, 94.5 mm Lug Length, 49.5 mm Lug Width, Crimping Die: P106, with Inspection Window
Key Specifications
| Barcode (EAN-13) |
07498399793
|
|---|---|
| SKU |
PANLCMD400-12-5
|
| Brand |
Panduit
|
| Product Type |
Lugs Standard Copper
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 5 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | LCMD400-12-5 |
| Barrel Type | Standard |
| Body Material | Copper |
| Conductive Material | Copper |
| Conductor Size | 400 mm |
| Crimping Die | P106 |
| Finish | Tin Plated |
| Inside Diameter | 27 mm |
| Lug Length | 94.5 mm |
| Lug Width | 49.5 mm |
| Number of Holes | 2 |
| Overall Length | 151.5 mm |
| Palm Type | Straight |
| Please Note | with Inspection Window |
| Stud Size | M12 Stud |
| Temperature | 90 deg C |
