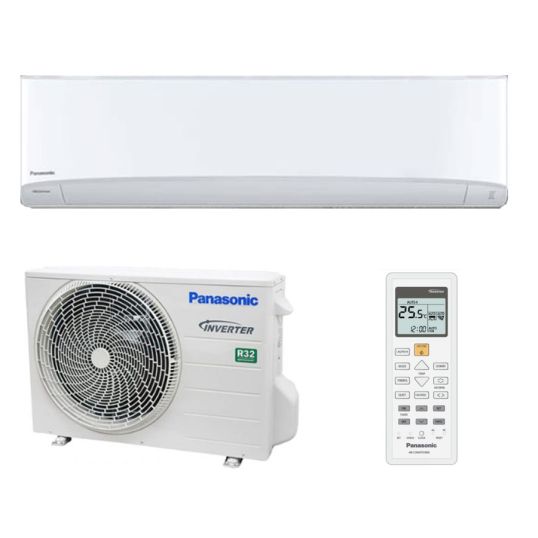

Panasonic RZ Series Split Air Conditioner Set Reverse Cycle 8kW 11.5A Cooling 9kW 12.3A Heating R32 Refrigerant
Description
Split Air Conditioner Set, 8 kW Cooling Capacity, 9 kW Heating Capacity, 11.5 Amp Cooling, 12.3 Amp Heating, Cooling Air Flow Rate: Indoor: 385 l/sec, Heating Air Flow Rate: Indoor: 400 l/sec, R32 Refrigerant, 2.48 kW Cooling, 2.66 kW Heating, 302mm x 1102mm x 244mm Indoor Dimensions, 795mm x 875mm x 320mm Outdoor Dimensions
Key Specifications
| SKU |
PASCS/CU-RZ80VKR-M
|
|---|---|
| Brand |
Panasonic
|
| Range Name |
RZ Series
|
| Product Type |
Air Conditioning
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 40101700 |
| UOM | EA |
| Vendor Product | CS/CU-RZ80VKR-M |
| Cooling Capacity | 8 kW |
| Cooling Air Flow Rate | Indoor: 385 l/sec |
| Heating Air Flow Rate | Indoor: 400 l/sec |
| Heating Capacity | 9 kW |
| Indoor Dimensions | 302 mm x 1102 mm x 244 mm |
| Outdoor Dimensions | 795 mm x 875 mm x 320 mm |
| Rated Current (Cooling) | 11.5 Amp |
| Rated Current (Heating) | 12.3 Amp |
| Refrigerant Type | R32 |
