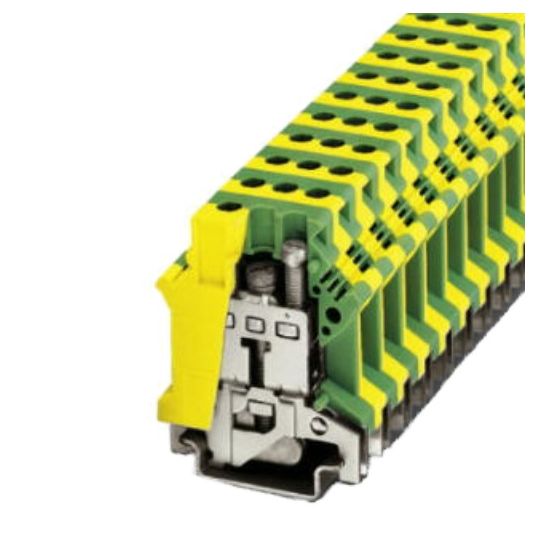

Phoenix Contact Rail Earth Terminal Block Screwed 2 Wire 1 Level 2.5-25mm Green/Yellow Polyamide

Description

Rail Earth Terminal Block, Rated Surge Voltage: 8 kV, 2.5-25mm Conductor, 2 Conductors, Wire Strip Length: 11 mm, Tightening Torque: 1.5 to 1.8 N/m, Wiring Format: 2 Conductor Through, 2 Connection Points, 1 Level, Screw Terminal, Insulation Material: Polyamide, Green/Yellow, -60 to 105 deg C, Flammability: V0, Height: 52.6 mm, 54 mm NS 35/7,5, 61.5 mm NS 35/15, 59 mm NS 32, 42.5 mm Width, 12.2 mm Depth

Key Specifications

SKU	PHO0443023
Brand	Phoenix Contact
Product Type	Rail Earth Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	443023
Colour	Green/Yellow
Conductor Size	2.5-25mm
Depth	12.2 mm
Flammability	V0
Insulation Material	Polyamide
Height	52.6 mm; 54 mm NS 35/75; 61.5 mm NS 35/15; 59 mm NS 32
Mounting Method	NS 32 - NS 35/75 - NS 35/15
Number of Conductors	2
Number of Connection Points	2
Number of Levels	1
Rated Surge Voltage	8 kV
Terminal Type	Screw
Tightening Torque	1.5-1.8 Nm
Width	42.5 mm
Wire Strip Length	11 mm
Wiring Format	2 Conductor Through
