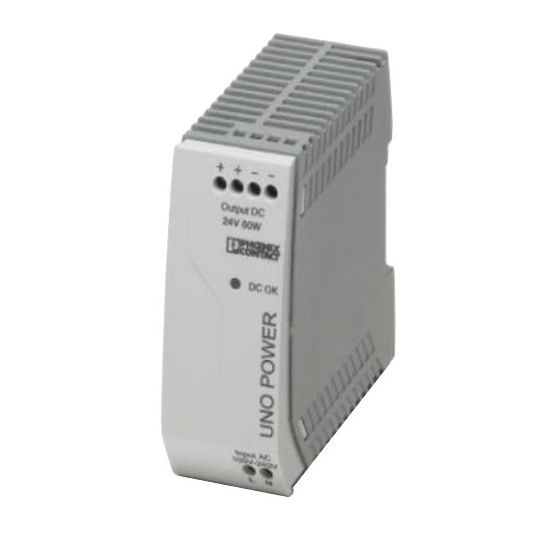

Phoenix Contact Power Supply DIN Rail Mount 1Ph In 100-240V Out 24VDC 60W 2.5A

chevron-left

Description

chevron-down
Power Supply, 100-240 Volt AC Input Voltage, 24 Volt DC Output Voltage, 2.5 Amp, 60 Watt Output, 50/60 Hz, 1 Phase Phase, 0.49 Power Factor, Screw Connection, DIN Rail Mounting, IP20, Class II Insulation, LED Display, 88/90% Efficiency, Plastic, -25 to 70 deg C, 90 mm Height, 35 mm Width, 84 mm Depth

Key Specifications

chevron-down
SKU
PHO2902992
Brand
Phoenix Contact
Range Name
Uno
Product Type
Power Supplies

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 39121000
UOM EA
Vendor Product 2902992
Connection Type Screw
Current 2.5 Amp
Depth 84 mm
Display LED
Efficiency 88/90%
Frequency 50/60 Hz
Height 90 mm
Input Voltage 100-240 Volt AC
Insulation Class II
IP Rating IP20
Material Plastic
Mounting Method DIN Rail
Output Voltage 24 Volt DC
Output Rating 60 Watt
Phase 1 Phase
Power Factor 0.49
Temperature -25 to 70 deg C
Width 35 mm
