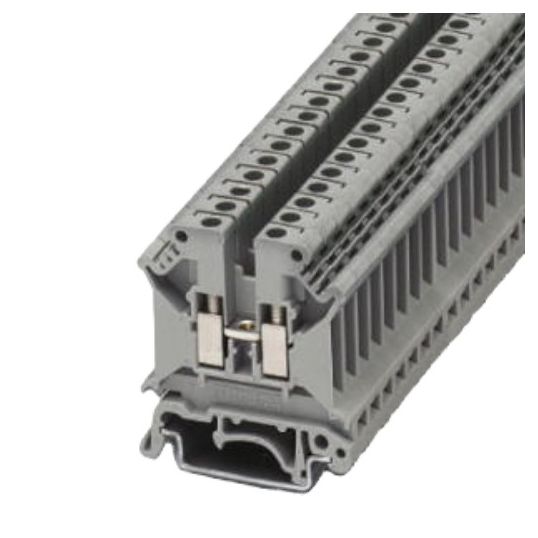

Phoenix Contact Rail Terminal Block Screwed 2 Wire 1 Level 0.2-6mm Grey Polyamide

Description

Feed Through Terminal Block, 0.2-6 mm, 2 Conductors, 800 Volt, 8 kV Rated Surge Voltage, 32 Amp, 8 mm Wire Strip Length, 0.6-0.8 Nm Tightening Torque, 2 Conductor Wiring Format, 2 Connection Points, 1 Potential, 1 Level, Screw Terminal, NS 35/15 - NS 35/7,5 Mounting, Polyamide Insulation, Grey, -60 to 110 deg C, UL94 V0 Flammability, 42.5 mm Height, 6.2 mm Width, 47 mm NS 35/7,5; 54.5 mm NS 35/15; 52 mm NS 32 Depth

Key Specifications

SKU	PHO3004362
Brand	Phoenix Contact
Product Type	Termninal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Universal foot which can be used on NS 35... and NS 32... DIN rails The UK universal screw terminal block series has the typical features which are decisive for practical applications Potential distribution via fixed bridges in the terminal centre or insertion bridges in the clamping space
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	3004362
Colour	Grey
Conductor Size	0.2-6mm
Current Rating	32 Amp
Depth	47 mm NS 35/7,5 - 54.5 mm NS 35/15 - 52 mm NS 32
Flammability	UL94 V0
Insulation Material	Polyamide
Height	42.5 mm
Mounting Method	NS 35/15 - NS 35/75
Number of Conductors	2
Number of Connection Points	2
Number of Potentials	1
Number of Levels	1
Rated Surge Voltage	8 kV
Terminal Type	Screw
Temperature	-60 to 110 deg C
Tightening Torque	0.6-0.8 Nm
Voltage Rating	800 Volt
Width	6.2 mm
Wire Strip Length	8 mm
Wiring Format	2 Conductor
