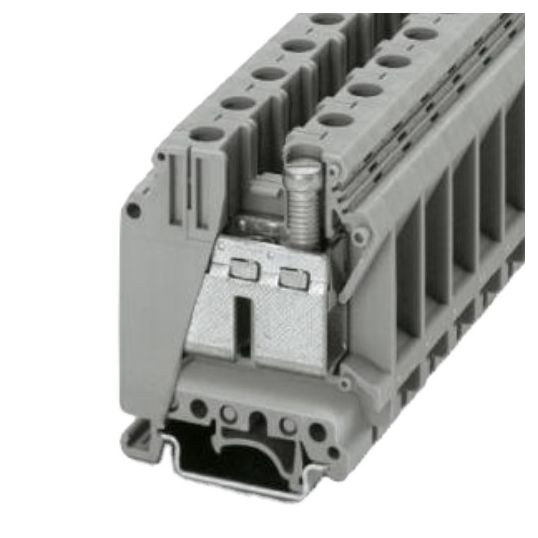

Phoenix Contact Rail Terminal Block Screwed 2 Wire 1 Level 0.75-50mm Grey Polyamide

Description

Feed Through Terminal Block, 0.75-50 mm, 2 Conductors, 1000 Volt, 8 kV Rated Surge Voltage, 125 Amp, 16 mm Wire Strip Length, 3.2-3.7 Nm Tightening Torque, 2 Conductor Wiring Format, 2 Connection Points, 1 Potential, 1 Level, Screw Terminal, NS 35/15 - NS 35/7,5 Mounting, Polyamide Insulation, Grey, -60 to 110 deg C, UL94 V0 Flammability, 50 mm Height, 15.1 mm Width, 62 mm NS 35/7,5; 69.5 mm NS 35/15; 67 mm NS 32 Depth

Key Specifications

SKU	PHO3008012
Brand	Phoenix Contact
Product Type	Termninal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section As well as saving space, the compact design enables user-friendly wiring in a small amount of space Optimum screwdriver guidance through closed screw shafts
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	3008012
Colour	Grey
Conductor Size	0.75-50mm
Current Rating	125 Amp
Depth	62 mm NS 35/7,5 - 69.5 mm NS 35/15 - 67 mm NS 32
Flammability	UL94 V0
Insulation Material	Polyamide
Height	50 mm
Mounting Method	NS 35/15 - NS 35/75
Number of Conductors	2
Number of Connection Points	2
Number of Potentials	1
Number of Levels	1
Rated Surge Voltage	8 kV
Terminal Type	Screw
Temperature	-60 to 110 deg C
Tightening Torque	3.2-3.7 Nm
Voltage Rating	1000 Volt
Width	15.1 mm
Wire Strip Length	16 mm
Wiring Format	2 Conductor
