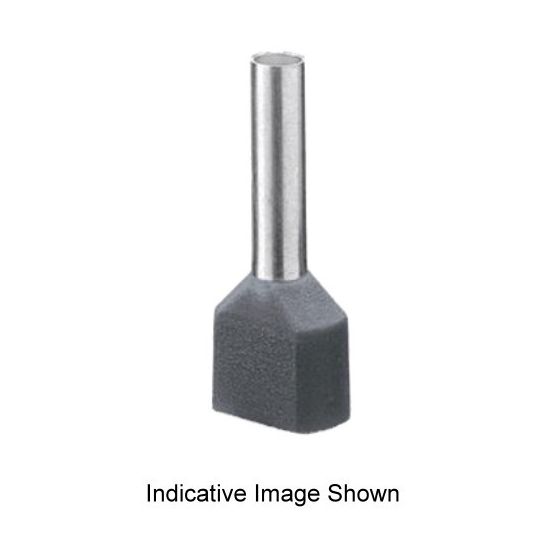

Phoenix Contact Bootlace Ferrule Insulated Twin Wire with Collar 2 x 4mm 3.8x12mm Pin Grey 23mm OAL

chevron-left

Description

chevron-down
Bootlace Ferrule, Insulated Twin Wire with Collar, Conductor Size: 4 mm, Number of Conductors: 2, 23mm Overall Length, Max. Wire Strip Length: 17mm, Collar Inside Diameter: 4.8mm x 8.5mm, Collar Thickness: 0.4mm, Pin Diameter: 3.8mm, Pin Length: 12mm, Pin Thickness: 0.2mm, Sleeve Material: Electrolytic Copper, Insulation Material: Polypropylene, Tin Plated Finish, Grey Insulation, Flammability: UL94-HB, 105 deg C, 100 Pack, with Collar

Key Specifications

chevron-down
SKU
PHO3201000
Brand
Phoenix Contact
Product Type
Bootlace Ferrules

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Different versions of the individual TWIN ferrules can be selected for specific applications
  • The TWIN ferrules provide a practical way of crimping two conductors in one ferrule
  • These special ferrules allow chain bridges to be set up with ease
  • For two wires
Standard Pack Size 100
UNSPSC Class 39121400
UOM PK
Vendor Product 3201000
Collar Inside Diameter 4.8 mm x 8.5 mm
Conductor Size 4 mm
Collar Thickness 0.4 mm
Finish Tin Plated
Insulation Colour Grey
Flammability UL94-HB
Number of Conductors 2
Overall Length 23 mm
Pin Length 12 mm
Pack Size 100 Pack
Pin Diameter 3.8 mm
Pin Thickness 0.2 mm
Please Note with Collar
Temperature 105 deg C
Sleeve Material Electrolytic Copper
Wire Strip Length 17 mm
