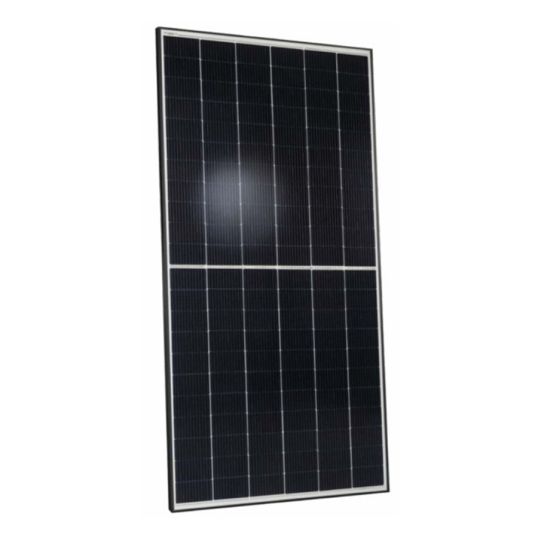

Q Cells Solar Panel 415W Mono-Crystalline Q.PEAK DUO ML-G10 132 Half Cells Black Anodised Aluminium Frame 25 Years

chevron-left

Description

chevron-down
Solar Panel, Monocrystalline Cell, 132 Cell, 415 Watt, 38.37 Volt Max. Voltage, 10.82 Amp Max. Current, 45.16 Volt Open Circuit Voltage, 11.26 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000 Volt Max. System Voltage, >=21.1% Efficiency, +5 Watt/-5 Watt Power Tolerance, Staubli MC4 Connector, 4 mm Solar Cable; (+) >=1250 mm/(-) >=1250 mm Output Cables, Junction Box: 53-101 mm x 32-60 mm x 15-18 mm w/Bypass Diodes, Anodized Aluminium Frame, 3.2 mm Thermally Pre-Stressed Glass w/Anti-Reflection Technology, -0.34%/K Temperature Coefficient, -40 to 85 deg C, 1879 mm Length, 1045 mm Width, 32 mm Height, 22 kg, IEC 61215 2016/61730 2016, DIN EN 50380, 25 Years Limited/25 Years Limited Linear Performance, Composite Film Back Cover

Key Specifications

chevron-down
SKU
QCLM.QPKDUOMLG10+415
Brand
Q Cells
Product Type
Solar Panels

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Breaking the 21% efficiency barrier - Q.ANTUM DUO Z technology with zero gap cell layout boosts module efficiency up to 21.4%
  • The most thorough testing programme in the industry - Q CELLS is the first solar module manufacturer to pass the most comprehensive quality programme in the industry, the new Quality Controlled PV of the independent certification institute TUV Rhineland
  • Innovative all-weather technology - optimal yields, whatever the weather with excellent low-light and temperature behaviour
  • Enduring high performance - long-term yield security with Anti LID technology, hot-spot protect and traceable quality Tra.Q
  • Extreme weather rating - high-tech aluminium alloy frame, certified for high snow (5400Pa) and wind loads (4000Pa)
  • A reliable investment - inclusive 25-year product warranty and 25-year linear performance warranty
Standard Pack Size 33
UNSPSC Class 26111600
UOM EA
Vendor Product M.QPEAKDUOMLG10+415
Cell Type Monocrystalline
Certifications IEC 61215 2016/61730 2016, DIN EN 50380
Connector Type Staubli MC4
Efficiency >=21.1%
Frame Construction Anodized Aluminium
Front Glass 3.2 mm Thermally Pre-Stressed Glass w/Anti-Reflection Technology
Height 32 mm
Item Weight 22 kg
Junction Box 53-101 mm x 32-60 mm x 15-18 mm w/Bypass Diodes
Max. Current 10.82 Amp
Max. Fuse Current 20 Amp
Max. Voltage 38.37 Volt
Max. System Voltage 1000 Volt
Number Of Cells 132
Open Circuit Voltage 45.16 Volt
Operating Temperature -40 to 85 deg C
Output Cables 4 mm Solar Cable; (+) >=1250 mm/(-) >=1250 mm
Please Note Composite Film Back Cover
Power Tolerance +5 Watt/-5 Watt
Short Circuit Current 11.26 Amp
Temperature Coefficient -0.34%/K
Warranty 25 Years Limited/25 years Limited Linear Performance
Wattage 415 Watt
Width 1045 mm
