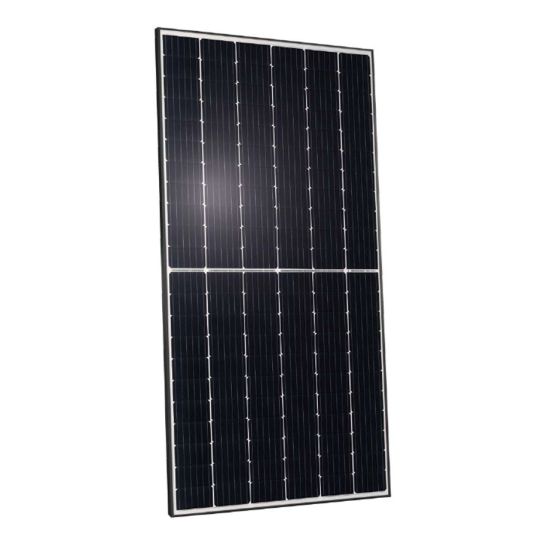

Q Cells Q.PEAK DUO ML-G10.A+ Solar Panel 400-405W Mono-Crystalline 132 Cells Black Frame 25 Years

chevron-left
loader
Loading...

Description

chevron-down
Solar Panel, Mono-Crystalline, 132 Cell, 400-405 Watt, 37.59-37.85 Volt, 10.64-10.7 Amp, 45.06-45.09 Volt Open Circuit, 11.16-11.19 Amp Short Circuit, 20 Amp Max. Fuse Current, 1000 Volt Max. System Voltage, ?20.4-20.6% Efficiency, 5/-0 Watt Power Tolerance, Staubli MC4 Connector, 4 mm Output Cables, 53-101 x 32-60 x 15-18 mm, IP67, with Bypass Diodes Junction Box, Black Anodised Aluminium Frame Construction, 3.2 mm Thermally Pre-Stressed with Anti-Reflection Technology Front Glass, -0.34%/K Temperature Coefficient, -40 to 85 deg C, 1879 mm Length, 1045 mm Width, 32 mm Height, 22 kg, IEC 61215:2016, IEC 61730:2016, DIN EN 50380

Key Specifications

chevron-down
SKU
QCLQ.PEAKDUOMLG10.A+
Brand
Q Cells
Range Name
Q Peak Duo
Product Type
Solar Panels

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Breaking the 21% efficiency barrier
  • The most thorough testing programme in the industry
  • Innovative All-Weather Technology
  • Enduring high performance
  • Extreme weather rating
  • A reliable investment
  • Front cover-3.2mm thermally pre-stressed glass with anti-reflection technology
  • Back cover-composite film
Standard Pack Size 32
UNSPSC Class 26111600
UOM EA
Vendor Product Q.PEAK DUO ML-G10.A+
Cell Type Monocrystalline
Connector Type Staubli MC4; IP68
Certifications IEC 61215 2016 IEC 61730 2016 DIN EN 50380
Efficiency >=20.4-20.6%
Frame Construction Anodized Aluminium
Front Glass 3.2 mm Thermally Pre-Stressed with Anti-Reflection Technology
Height 32 mm
Item Weight 22 kg
Junction Box 53-101 mm x 32-60 mm x 15-18 mm IP67 with Bypass Diodes
Max. Current 10.64-10.7 Amp
Max. Fuse Current 20 Amp
Max. System Voltage 1000 Volt
Max. Voltage 37.59-37.85 Volt
Number Of Cells 132
Open Circuit Voltage 42.39-42.56 Amp
Operating Temperature -40 to 85 deg C
Power Tolerance 5/-0 Watt
Output Cables 4 mm Solar Cable (+) >=1250 mm (?) >=1250 mm
Short Circuit Current 8.92-9.04 Amp
Temperature Coefficient -0.34%/K
Warranty 25 Years
Wattage 400-405 Watt
Width 1045 mm
