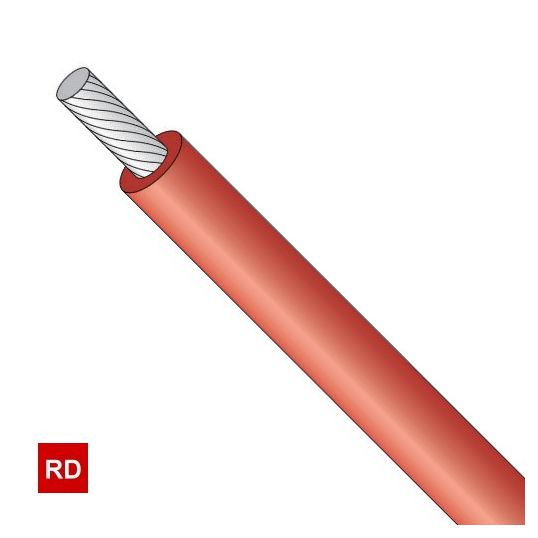

Radox 1.5mm 1 Core Red High Temperature Flexible Wire XLPO

Description

Flexible Wire, High Temperature, 1.5 mm, Stranded Tinned Copper, 0.6-1 kV, 1 Core, 30/0.25 mm Strands, 2.7 mm Overall Diameter, LSZH XLPO Insulation, Red Insulation, Unsheathed, -40 to 125 deg C

Key Specifications

SKU	RADR125/1.5/RD
Brand	Radox
Range Name	R125

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High current carrying capacities Electron beam cross-linked Short circuit temperatures of up to 280 deg C with no change to material properties Easy processability (removal of insulation etc.) Excellent resistance against all conventional impregnating varnishes and potting resins Flexible Good abrasion resistance and mechanical properties Good resistance to ozone, UV and sunlight radiation Thermal Class B
Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	R125/1.5/RD
Conductor Type	Stranded Tinned Copper
Conductor Size	1.5 mm
Insulation Material	LSZH XLPO
Insulation Colour	Red
Overall Diameter	2.7 mm
Number of Cores	1 Core
Sheath Material	Unsheathed
Stranding	30/0.25 mm
Temperature	-40 to 125 deg C
Voltage	0.6-1 kV
