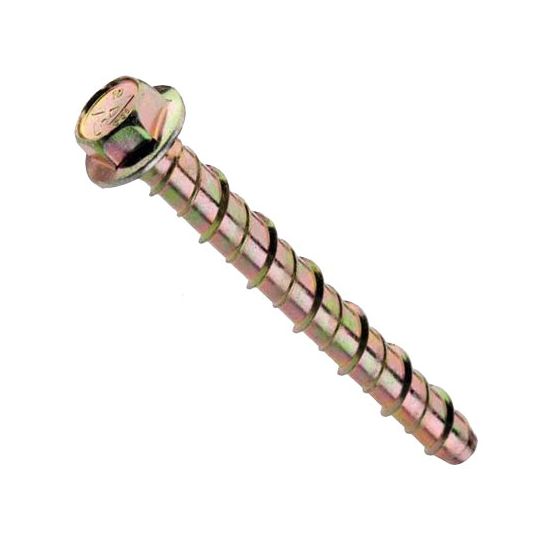

Ramset AnkaScrew Screw-In Anchor Hex Flange 6x50mm High Carbon Steel Zinc Plated
Description
Screw-In Anchor Hex Flange, 6 mm, Flanged Hex Head, 50 mm, 44mm Effective Length, 60mm Drill Depth, 6mm Drill Diameter, High Carbon Steel, Zinc Plated, 45mm Embedment Depth, 20mm Maximum Fixture Thickness, 8mm Fixture Hole Diameter, 25mm Minimum Edge Distance, 50mm Minimum Spacing, Tensile Strength: 4.1 kN, Shear Strength: 4.5 kN
Key Specifications
| SKU |
RAMAS06050
|
|---|---|
| Brand |
Ramset
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 31162100 |
| UOM | EA |
| Vendor Product | RAMAS06050-NLA |
| Drill Diameter | 6mm |
| Fixing Size | 6mm |
| Embedment Depth | 45mm |
| Finish | Zinc Plated |
| Head Type | Flanged Hex |
| Material | High Carbon Steel |
| Maximum Fixture Thickness | 20mm |
| Product Type | Screw-In Anchor Hex Flange |
