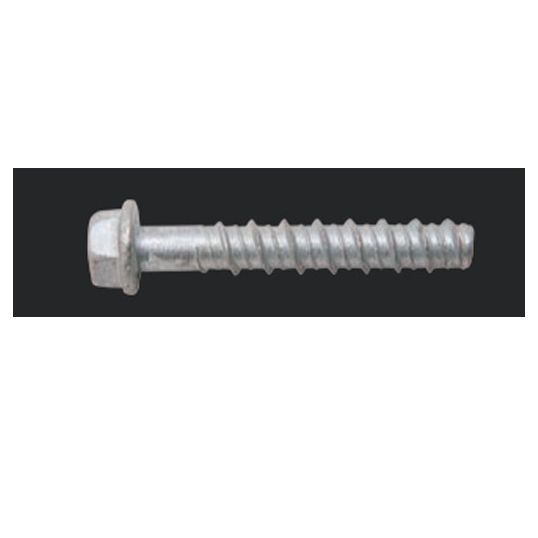

Ramset Screw-In Anchor Flanged Hex Head 12x75mm High Carbon Steel Mechanically Galvanised

Description

Screw-In Anchor Flanged Hex Head, 12 mm Diameter, Flanged Hex Head, 16 mm Head Size, 75 mm Length, 100 mm Drill Depth, 12 mm Drill Diameter, 90 mm Embedment Depth, 15 mm Maximum Fixture Thickness, 15 mm Fixture Hole Diameter, 50 mm Minimum Edge Distance, 100 mm Minimum Spacing, 14.4 kN Tensile Strength, High Carbon Steel, Galvanised, For Use With Concrete, Solid Brick, Solid Block, Hollow Block, Hollow Slab, Hollow Brick, 25

Key Specifications

SKU	RAMAS12075WGM
Brand	Ramset

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High thread engagement increases clamp force and holding capacity over a wide range of loading The WERCS AnkaScrew is ideal for close-to-edge and close-to-anchor installation as its self-tapping, rotation setting method of installation is subject to low expansion pressure, therefore does not burst the substrate For concrete, brick & block (solid & hollow) The WERCS AnkaScrew thread design provides clearance for rapid removal of material and reduces jamming. The WERCS AnkaScrew is 100% removable The WERCS AnkaScrew is both fast and easy to install as it simply screws into a pre-drilled hole The WERCS AnkaScrew is even faster and easier to remove. It simply screws out leaving an empty hole with no protruding metal parts to grind off Suitable for installation with impact wrenches
Standard Pack Size	25
UNSPSC Class	31162100
UOM	EA
Vendor Product	RAMAS12075WGM
Diameter	12 mm
Drill Diameter	12 mm
Drill Depth	100 mm
Embedment Depth	90 mm
Finish	Galvanised
Fixture Hole Diameter	15 mm
For Use With	Concrete/Solid Brick/Solid Block/Hollow Block
Head Size	16 mm
Head Type	Flanged Hex
Maximum Fixture Thickness	15 mm
Material	High Carbon Steel
Minimum Spacing	100 mm
Minimum Edge Distance	50 mm
Pack Size	25 Pack
Product Type	simple
Tensile Strength	14.4 kN
