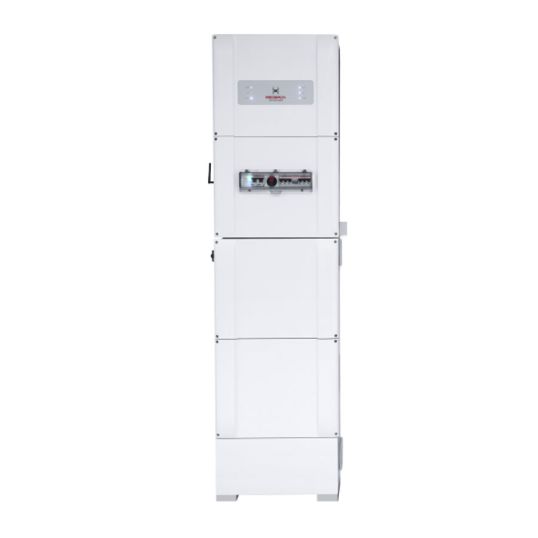

Redback Smart Hybrid System ST1000 RB-HVC-600-40 BE14000-HV H48074 2 MPPT 3 Phase 10kVA 12.5/22A

chevron-left

Description

chevron-down
Smart Hybrid System, 3 Phase, 13 kW DC Input, 200-550 Volt DC MPPT Voltage Range, 180 Volt DC Start-up, 12.5/22 Amp DC Max. Input, 2 MPPTs, 10 kVA AC Output, 400 Volt AC Nominal, 50 Hz AC Operating, <3% Harmonic Distortion, 97.6% Efficiency, 96.8% European Weighted Efficiency, 99.9% MPPT Efficiency, Transformerless, <4000 mtr Max. Altitude, Lithium-Ion Phospate, Bluetooth, Wi-Fi or Ethernet Communication Port, Coded, Coloured LED Display, Natural Convection Cooling, <30 dB, IP66, 4K4H, Battery Cabinet: Steel Chassis; Inverter, BoS & Covers: Aluminum, Sealed and Powder Coated, -35 to 60 deg C, 0-95% Relative Humidity, 1960 mm Height, 1189 mm Width, 352 mm Depth, 205 kg (Installed, with 4 x H48074)

Key Specifications

chevron-down
SKU
RDKST-14.2KWHBUNDLE
Brand
Redback
Product Type
Hybrid Inverters

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Three Phase - Combines a 10kVA Solar Inverter with two standard battery storage capacity
  • 3 Phase Back up supply in a power outage (when backup circuit is connected)
  • Suitable for Indoor & Outdoor Installation
  • Site Manager Functionality
  • Streamlined all-in-one design
  • Easy monitoring app and portal
  • Australian supported 10 year warranty
Standard Pack Size 1
UNSPSC Class 26111600
UOM EA
Vendor Product ST-14.2KWHBUNDLE
AC Nominal Voltage 400 Volt
AC Operating Frequency 50 Hz
AC Output Power 10 kVA
Battery Lithium-Ion Phospate
Communication Port Bluetooth/Wi-Fi or Ethernet
Climate Category 4K4H
Cooling Method Natural Convection
DC Input Power 13 kW
DC Max. Input Current 12.5-22 Amp
DC MPPT Voltage Range 200-550 Volt
DC Start-up Voltage 180 Volt
Depth 352 mm
Display Type Coded Coloured LED
Efficiency 97.60%
European Weighted Efficiency 96.80%
IP Rating IP66
Height 1960 mm
Max. Operating Altitude <4000 mtr
MPPT Efficiency 99.90%
Noise Level <30 dB
Number of MPPTs 2
Operating Temperature -35 to 60 deg C
Phase 3 Phase
Relative Humidity 0-95%
Topology Transformerless
Total Harmonic Distortion <3%
Width 1189 mm
