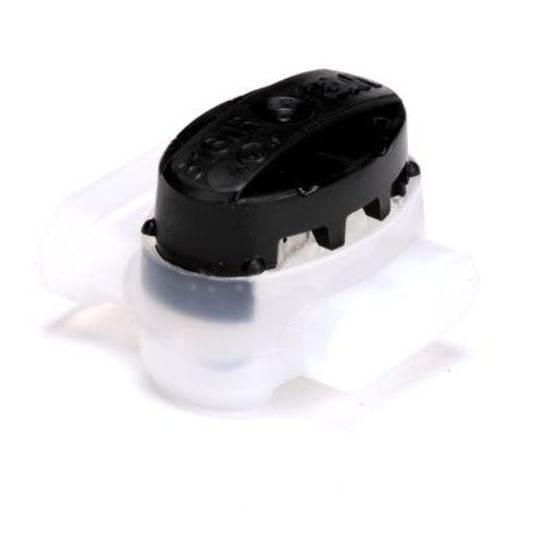

3M IDC Electrical Pigtail Connector 0.5-1mm Blue Cap/White Body 30 Pack
Description
IDC Pigtail Connector, 0.5-1 mm, 1 Conductors, 600 Volt, Pigtail Terminal, Nylon Body, Copper, Nylon Insulation, Blue/White Insulation, 0.16 in Insulation Diameter, Tin Plated, 105 deg C, 0.95 in Height, 0.92 in Width, 0.56 in Depth, 30 Pack
Key Specifications
| SKU |
REE3M316-IR
|
|---|---|
| Brand |
3M
|
| Range Name |
Scotchlok
|
| Product Type |
Insulation Displacement Contact
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 30 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 3M316-IR-NLA |
| Body Material | Nylon |
| Conductive Material | Copper |
| Conductor Size | 0.5-1mm |
| Depth | 0.56 Inch |
| Finish | Tin Plated |
| Height | 0.95 Inch |
| Insulation Diameter | 0.16 Inch |
| Insulation Material | Nylon |
| Insulation Colour | Blue/White |
| Pack Size | 30 Pack |
| Number of Conductors | 1 |
| Temperature | 105 deg C |
| Terminal Type | Pigtail |
| Voltage Rating | 600 Volt |
| Width | 0.92 Inch |
