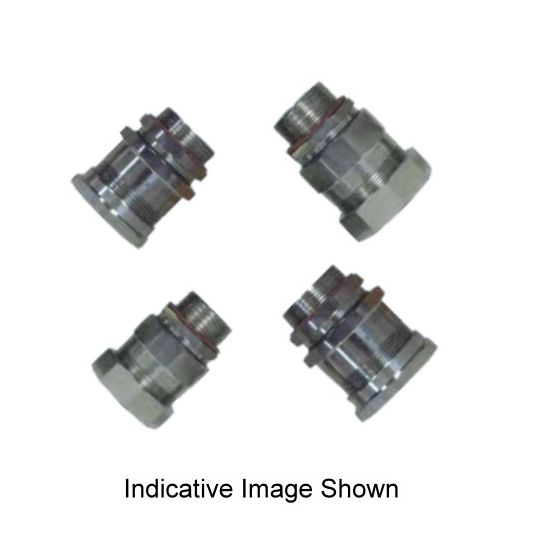

PowerForce Metal Cable Gland Armoured General Purpose 63.1-68.2mm M63 x 1.5 IP66/68

chevron-left

Description

chevron-down
Metal Cable Gland, Armoured, General Purpose, M63 x 1.5, 19 mm Thread Length, 1.5 mm Pitch, 63.1 mm Min. Sheath OD, 68.2 mm Max. Sheath OD, 56.25 mm Max. Bedding OD, 2.5 mm Min. Armour Wire, 3.15 mm Max. Armour Wire, 101.9 mm Width Across Corners, 79 mm Protrusion Length, IP66/68, Brass Body, Nickel Plated Finish

Key Specifications

chevron-down
Barcode (EAN-13)
9318266468412
SKU
REEPOWWGA636
Brand
PowerForce
Range Name
Type WGA
Product Type
Cable Glands Metal

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • For indoor and outdoor use
  • Gland bore provides cable support
  • Provides armour clamp and seal on outer sheath
  • General purpose cable gland for steel wired armoured cable
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product POWWGA636
Body Material Brass
Finish Nickel Plated
IP Rating IP66/68
Max. Armour Wire 3.15 mm
Max. Bedding OD 56.25 mm
Max. Sheath OD 68.2 mm
Min. Armour Wire 2.5 mm
Min. Sheath OD 63.1 mm
Protrusion Length 79 mm
Thread Length 19 mm
Thread Pitch 1.5 mm
Thread Size M63 x 1.5
Width Across Corners 101.9 mm
