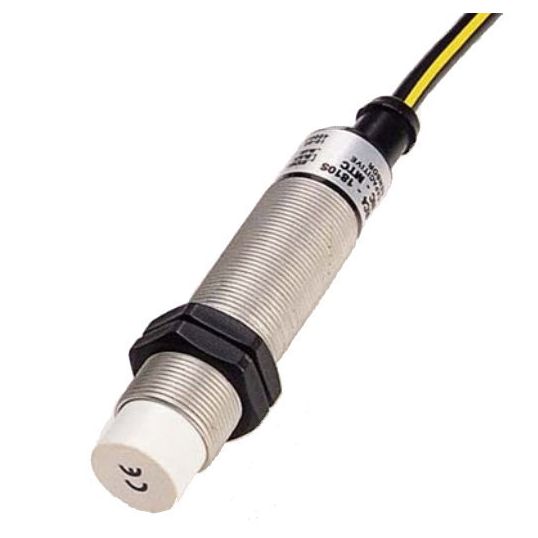

Rhomberg Proximity Switch Capacitive Sensing Shielded Flush M18 10-60VDC NPN 1NO 2m L
Description
Proximity Switch Capacitive Sensing Shielded Flush, Sensing Range: 5 mm, NPN, 10-60 Volt DC, 400 mA Load, NO, LED, 2 mtr Cable, Flush Mount, IP67, Metal, -20 to 70 deg C, 18 mm Diameter, Length: 80 mm
Key Specifications
| Barcode (EAN-13) |
9324684220075
|
|---|---|
| SKU |
RHORC5-1805F-NO
|
| Brand |
Rhomberg
|
| Range Name |
RC5
|
| Product Type |
Proximity Sensors
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | RC51805FNO |
| Cable Size | 2 mtr |
| Current | 400 mA |
| Contact Configuration | Normally Opened |
| Diameter | 18 mm |
| IP Rating | IP67 |
| Light Source | LED |
| Mounting Method | Flush |
| Material | Metal |
| Operating Voltage | 10-60 Volt DC |
| Output Function | NPN |
| Sensing Range | 5 mm |
| Temperature | -20 to 70 deg C |
