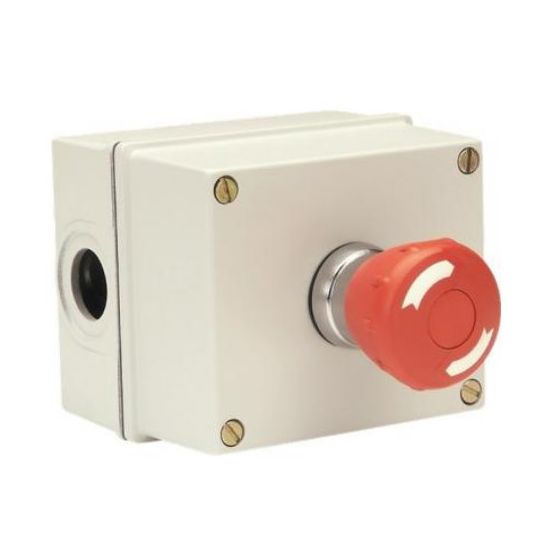

Pushbutton Emergency Stop 1G 10A 1NC Twist Reset Chromated Zinc & Stainless Steel Grey/Red Operator Mushroom Head

$Sprecher\Sprecher_D71MM1.jpg$

Description

Pushbutton Emergency Stop Complete, 10 Amp, 1 Operator, 1NC, Mushroom Head, Pushbutton, Hub Size: 40 mmm Head, IP65, IP66, Chromated Zinc and Stainless Steel, Plastic Head, Grey, Red Operator, -25 to 70 deg C, 85 mm Height, 89 mm Width, 58 mm Depth

Key Specifications

Barcode (EAN-13)	9321807229571
SKU	S&SD7-1MM1
Brand	Sprecher+Schuh
Range Name	D7
Product Type	Control Stations

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	D7 pilot devices offer maximum flexibility and a wide choice for all 22.5 mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations Aesthetically appealing and modularly designed to make assembly and interchangeability easy Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments D7P is a plastic operator with a captive black plastic front bezel Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments D7M has a die-cast zinc housing and mounting ring for rugged durability Finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	D71MM1
Actuator	Pushbutton
Colour	Grey/Red Operator
Contact Configuration	1 Normally Closed
Current	10 Amp
Enclosure Material	Chromated Zinc and Stainless Steel
Depth	58 mm
Hub Size	40 mmm Head
Height	85 mm
IP Rating	IP65/66
Number of Operators	1 Module
Operator Type	Mushroom Head
Temperature	-25 to 70 deg C
Width	89 mm
