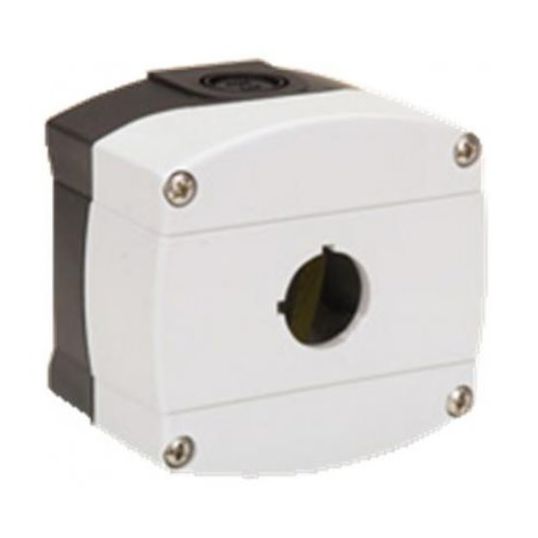

Sprecher+Schuh Enclosure For Pushbutton Control Stations 1x22.5 mm HoleGrey Plastic IP66

$Sprecher\Sprecher_D71PM.jpg$

Description

Pushbutton Enclosure, For Use With Control Stations, 1 x 22.5 mm Operator Openings, IP66, NEMA ICS-5, Polycarbonate/PBT Blend Housing, Grey, -25 to 70 deg C, 85 mm Height, 89 mm Width, 58 mm Depth, Low Profile For Single Level Rear Elements

Key Specifications

Barcode (EAN-13)	9321807216304
SKU	S&SD7-1PM
Brand	Sprecher+Schuh
Range Name	D7

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	D7 pilot devices offer maximum flexibility and a wide choice for all 22.5 mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations Aesthetically appealing and modularly designed to make assembly and interchangeability easy Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments D7P is a plastic operator with a captive black plastic front bezel. Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments Finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance
Standard Pack Size	1
UNSPSC Class	39121300
UOM	EA
Vendor Product	D71PM
Colour	Grey
Depth	58 mm
For Use With	Control Stations
Height	85 mm
Housing Material	Polycarbonate/PBT Blend
Operator Openings	1 x 22.5 mm
IP Rating	IP66
Please Note	Low Profile For Single Level Rear Elements
NEMA Rating	NEMA ICS-5
Temperature	-25 to 70 deg C
Width	89 mm
