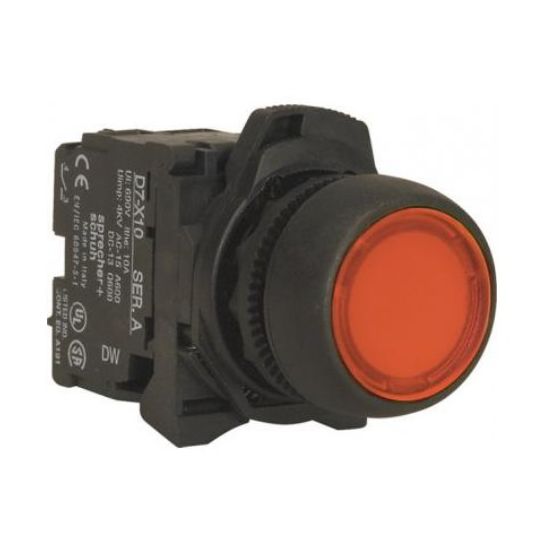

Sprecher+Schuh Pushbutton Complete Flush Head Plastic Body k Illuminated Momentary 240V 1N.C Red 22.5mm Panel

$Sprecher\Sprecher_D7PLF4PN.jpg$

Description

Pushbutton Complete Flush Head Plastic Body, Size: 22.5 mm, Voltage: 240 Volt AC, 10 Amp, Frequency: 50/60 Hz, 1NC, Illuminated, Operating Travel: 1.5 mm, Momentary Action, Flush Head, Tightening Torque: 1.7 N/m, IP65, IP66, Screw Terminal, Mounting Diameter: 22.5 mm, Panel Mount, Thermoplastic Housing, Glass-Filled Nylon/PA6/PA66 Bezel, Red, -25 to 70 deg C, 29.6 mm Diameter, 10 mm Depth

Key Specifications

Barcode (EAN-13)	9321807216373
SKU	S&SD7P-LF4-PN7R-X01
Brand	Sprecher+Schuh
Range Name	D7
Product Type	Pushbuttons Complete

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	D7 pilot devices offer maximum flexibility and a wide choice for all 22.5mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations Aesthetically appealing and modularly designed to make assembly and interchangeability easy Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments D7P is a plastic operator with a captive black plastic front bezel. Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments D7M has a die-cast zinc housing and mounting ring for rugged durability, finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	D7PLF4PN7RX01
Colour	Red
IP Rating	IP65/66
Voltage	240 Volt AC
Contact Configuration	1 Normally Closed
Size	22.5 mm
Diameter	29.6 mm
Terminal Connection	Screw
Current	10 Amp
Depth	10 mm
Frequency	50/60 Hz
Temperature	-25 to 70 deg C
Mounting Method	Panel
Mounting Diameter	22.5 mm
Operating Travel	1.5 mm
Head Type	Flush
Operator Action	Illuminated Momentary Action
Tightening Torque	1.7 N/m
