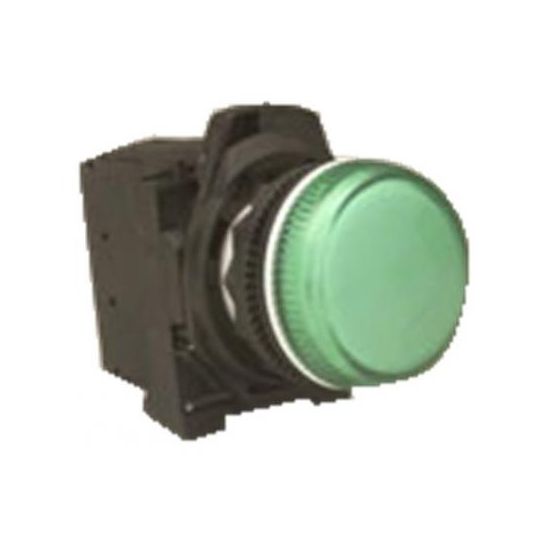

Sprecher+Schuh Pilot Indicator Complete Plastic Body 240V w/ LED Green

Description

Pilot Indicator Light Complete, 240 Volt AC/DC, LED, Round, Green Lamp Colour, Screw Terminal, Panel Mounting, IP65/66, NEMA ICS-5, Plastic Housing, -25 to 70 deg C, 29.6 mm Diameter, LED Block

Key Specifications

Barcode (EAN-13)	9321807216144
SKU	S&SD7P-P3-PN7G
Brand	Sprecher+Schuh
Range Name	D7
Product Type	Pilot Indicators

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	D7 pilot devices offer maximum flexibility and a wide choice for all 22.5 mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations Aesthetically appealing and modularly designed to make assembly and interchangeability easy Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments D7P is a plastic operator with a captive black plastic front bezel Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments D7M has a die-cast zinc housing and mounting ring for rugged durability Finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance Polycarbonate and PBT Blend fixing collar material
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	D7PP3PN7G
Diameter	29.6 mm
Housing Material	Plastic
IP Rating	IP65/66
Lamp Colour	Green
Lamp Shape	Round
Lamp Type	LED
Mounting Method	Panel
Please Note	LED Block
NEMA Rating	NEMA ICS-5
Temperature	-25 to 70 deg C
Terminal Connection	Screw
Voltage	240 Volt AC/DC
