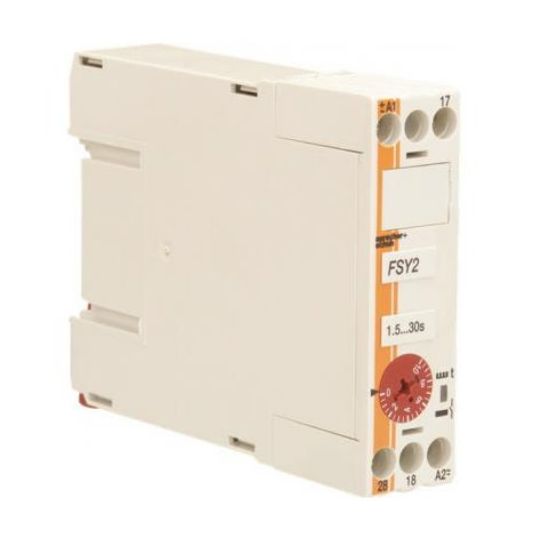

Sprecher+Schuh Time Delay Relay Electronic DIN 35 Rail Mount 2NO Star Delta 1.5-30s 24/240V/24/48VDC

$Sprecher\Sprecher_RZ7FSY2DU23.jpg$

Description

Time Delay Relay Electronic, 24/240 Volt AC, 24/48 Volt DC, 1 mA, 5 VA AC, 0.5 Watt DC, 2NO, Timing Function: Star Delta, Timing Range: 1.5-30 sec, 30000000 Mechanical, 200000 Electrical Cycles, Tightening Torque: 0.8-1.2 N/m, Screw Terminal, DIN Mount 35 Rail, IP20, IP30, -25 to 45 deg C, 78.8 mm Height, 22.5 mm Width, 109 mm Depth

Key Specifications

SKU	S&SRZ7-FSY2DU23
Brand	Sprecher+Schuh
Range Name	RZ7
Product Type	Time Delay Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Rugged construction and high level of timing accuracy established through rigorous design and testing Various timing ranges from 0.05 seconds to 60 hours allowing fine control of switching requirements
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	RZ7FSY2DU23
Contact Configuration	2 Normally Opened
Current	1 mA
Height	78.8 mm
Mounting Method	DIN Rail
Depth	109 mm
IP Rating	IP20/30
Operating Cycles	30000000 Mechanical/200000 Electrical Cycles
Power Rating	5 VA AC/0.5 Watt DC
Temperature	-25 to 45 deg C
Terminal Connection	Screw
Tightening Torque	0.8-1.2 N/m
Timing Function	Star Delta
Timing Range	1.5-30 Seconds
Voltage	24-240 Volt AC/24-48 Volt DC
Width	22.5 mm
