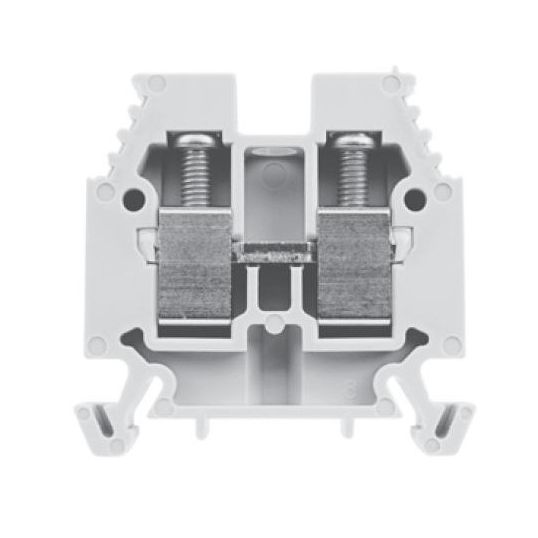

Sprecher+Schuh Rail Terminal Block Screwed 1 Wire 1 Level 16mm Grey Polyamide 66

Description

Terminal Block, 16 mm, 2 Conductors, 800 Volt, 76 Amp, 13 mm Wire Strip Length, 2.1 Nm Tightening Torque, 1 Conductor Wiring Format, 2 Connection Points, 1 Level, Terminal Marking Position, Screw Terminal, DIN Rail Mounting, Polyamide 66 Insulation, Grey, 40 to 90 deg C, UL94 V0 Flammability, 47.6 mm Height, 41 mm Width, 11 mm Depth

Key Specifications

Barcode (EAN-13)	10611320257370
SKU	S&SV7-W16S
Brand	Sprecher+Schuh
Range Name	V7-W
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed for ease of wiring, secure connections and durability Comprehensive range, offering a wide array of terminal types for most circuits and functions Terminals accommodate a full range of wire sizes from 0.5 to 70 sq-mm wire cross section Cone shaped guide allows easy wire insertion Specialty terminals including two-level, grounding, diode, isolating, fuse, sensor and thermocouple terminals
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	V7W16S
Colour	Grey
Conductor Size	16mm
Current Rating	76 Amp
Depth	11 mm
Flammability	UL94 V0
Insulation Material	Polyamide 66
Height	47.6 mm
Marking Position	Terminal
Mounting Method	DIN Rail
Number of Conductors	2
Number of Connection Points	2
Number of Levels	1
Terminal Type	Screw
Temperature	40 to 90 deg C
Tightening Torque	2.1 Nm
Voltage Rating	800 Volt
Width	41 mm
Wire Strip Length	13 mm
Wiring Format	1 Conductor
