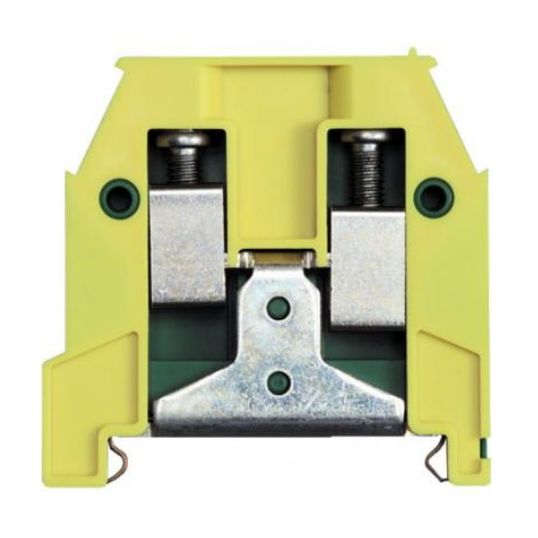

Sprecher+Schuh Rail Earth Terminal Block Screwed 1 Wire 10mm Green/Yellow

Description

Earth Terminal Block, 10 mm, 2 Conductors, 500 Volt, 11 mm Wire Strip Length, 0.8 Nm Tightening Torque, 1 Conductor Wiring Format, 2 Connection Points, 1 Level, Terminal Marking Position, Screw Terminal, Rail Mounting, Green/Yellow, -40 to 90 deg C, 48 mm Height, 41 mm Width, 8 mm Depth

Key Specifications

SKU	S&SV7-WG10S
Brand	Sprecher+Schuh
Range Name	V7-W
Product Type	Rail Earth Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed for ease of wiring, secure connections and durability Comprehensive range, offering a wide array of terminal types for most circuits and functions Terminals accommodate a full range of wire sizes from 0.5 to 70 sq-mm wire cross section Cone shaped guide allows easy wire insertion Specialty terminals including two-level, grounding, diode, isolating, fuse, sensor and thermocouple terminals
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	V7WG10S
Colour	Green/Yellow
Conductor Size	10mm
Depth	8 mm
Height	48 mm
Marking Position	Terminal
Mounting Method	Rail
Number of Conductors	2
Number of Connection Points	2
Number of Levels	1
Terminal Type	Screw
Temperature	-40 to 90 deg C
Tightening Torque	0.8 Nm
Voltage Rating	500 Volt
Width	41 mm
Wire Strip Length	11 mm
Wiring Format	1 Conductor
