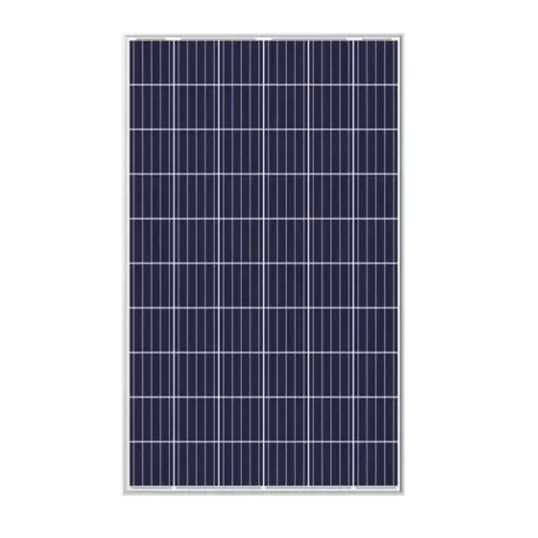

Seraphim Series 6 Inch 60 Cells Solar Panel 280 Watt Poly-Crystalline 60 Cells

$Seraphim\Seraphim_SRP-2806PB.jpg$

Description

Solar Panel, Polycrystalline, 60 Cells, 280 Watt, 31.8 Volt, 8.81 Amp, 39 Volt Open Circuit, 9.12 Amp Short Circuit Current, 15 Amp Max. Fuse Current, 1000 (TUV) Max. System Voltage, 17.2% Efficiency, 0, +4.99 Watt Power Tolerance, MC4 Compatible Connector, 4 mm ,Cable 900 mm Output Cables, IP67 Junction Box, Anodized Aluminium Alloy Frame Construction, 3.2 mm Tempered Glass, Low Iron Front Glass, 0.41%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1640 mm x 992 mm x 35 mm, 17.5 kg, ISO 9001, ISO 14001, OHSAS 18001

Key Specifications

SKU	SERSRP-280-6PB
Brand	Seraphim
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Bankable products Safety for salt mist corrosion (IEC61701, tested in T?V S?D) Safety for ammonia corrosion (IEC62716, tested in T?V S?D) Top rank in Photon yield measurement Safety for fire risk (Class C tested in T?V S?D and Rheinand) Outstanding power output capability at low irradiance Triple 100% electroluminescence (EL) tests minimize breakage rate World 1st company to pass Thresher Test and On-site Power Measurement Validation certificate Anti-PID products, passing TÜV SÜD system voltage durability test
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	SRP-280-6PB
Cell Type	Polycrystalline
Certifications	ISO 9001 ISO 14001 OHSAS 18001
Connector Type	MC4 Compatible
Efficiency	17.20%
Frame Construction	Anodized Aluminium
Height	35 mm
Front Glass	3.2 mm Tempered Glass/Low Iron
Item Weight	17.5 kg
Junction Box	IP67
Max. Current	8.81 Amp
Max. Fuse Current	15 Amp
Max. System Voltage	1000 (TUV)
Max. Voltage	31.8 Volt
Operating Temperature	-40 to 85 deg C
Open Circuit Voltage	39 Volt
Number Of Cells	60
Output Cables	4 sq-mm /900 mm
Power Tolerance	0 +4.99 Watt
Short Circuit Current	9.12 Amp
Temperature Coefficient	0.41%/deg C
Wattage	280 Watt
Width	992 mm
