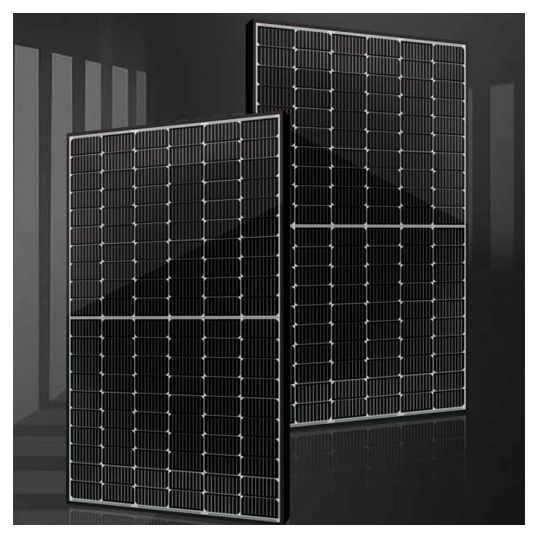

Seraphim Half Cell Ceries Solar Panel 370 Watt Mono-Crystalline PERC 120 Cells
Description
Solar Panel, Monocrystalline PERC, 120 Cells, 370 Watt, 34.6 Volt, 10.7 Amp, 41.6 Volt Open Circuit, 11.34 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000 Volt DC Max. System Voltage, 19.8% Efficiency, 0, +4.99 Watt Power Tolerance, MC4 Compatible Connector, 4 mm, Portrait: 255 mm(+)/355 mm(-); Landscape:1300 mm Output Cables, IP68, 3 Diodes Junction Box, Anodize Aluminium Alloy Frame Construction, 3.2 mm AR Coating Tempered Glass, Low Iron Front Glass, 0.36%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1776 mm x 1052 mm x 35 mm, 20 kg
Key Specifications
| SKU |
SERSRP-370-BMB
|
|---|---|
| Brand |
Seraphim
|
| Range Name |
Blade
|
| Product Type |
Solar Panels
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | SRP-370-BMB |
| Cell Type | Monocrystalline |
| Connector Type | MC4 Compatible |
| Efficiency | 19.80% |
| Frame Construction | Anodized Aluminium |
| Front Glass | 3.2 mm AR Coating Tempered Glass/Low Iron |
| Height | 35 mm |
| Item Weight | 20 kg |
| Junction Box | IP68/3 Diodes |
| Max. Current | 10.7 Amp |
| Max. Fuse Current | 20 Amp |
| Max. Voltage | 34.6 Volt |
| Max. System Voltage | 1000 Volt DC |
| Number Of Cells | 120 |
| Open Circuit Voltage | 41.6 Volt |
| Operating Temperature | -40 to 85 deg C |
| Output Cables | 4 sq-mm/Portrait: 255 mm(+)/355 mm(-): Landscape:1300 mm |
| Power Tolerance | 0 +4.99 Watt |
| Short Circuit Current | 11.34 Amp |
| Temperature Coefficient | 0.36%/deg C |
| Wattage | 370 Watt |
| Width | 1776 mm |
