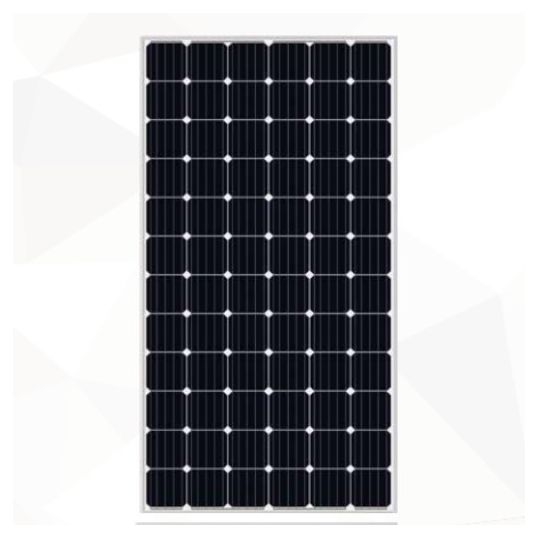

Seraphim Series 6 Inch 72 Cells Solar Panel 375W Mono-Crystalline PERC 72 Cells
Description
Solar Panel, Monocrystalline PERC, 72 Cells, 375 Watt, 39.1 Volt, 9.6 Amp, 48 Volt Open Circuit, 9.96 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000 Volt DC Max. System Voltage, 19.33% Efficiency, 0, +4.99 Watt Power Tolerance, MC4 Compatible Connector, 4 mm ,Cable 1200 mm Output Cables, IP68, 3 Diodes Junction Box, Anodized Aluminium Alloy Frame Construction, 3.2 mm AR Coating Tempered Glass, Low Iron Front Glass, 0.38%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1996 mm x 992 mm x 40 mm, 21.5 kg, IEC61730-1:2016, IEC61730-2:2016, IEC61215-1:2016
Key Specifications
| SKU |
SERSRP-375-6MA
|
|---|---|
| Brand |
Seraphim
|
| Product Type |
Solar Panels
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | SRP-375-6MA |
| Cell Type | Monocrystalline |
| Certifications | IEC61730-1 2016 IEC61730-2 2016 IEC61215-1 2016 |
| Connector Type | MC4 Compatible |
| Efficiency | 19.33% |
| Frame Construction | Anodized Aluminium |
| Front Glass | 3.2 mm AR Coating Tempered Glass/Low Iron |
| Height | 40 mm |
| Item Weight | 21.5 kg |
| Junction Box | IP68/3 Diodes |
| Max. Current | 9.6 Amp |
| Max. Fuse Current | 20 Amp |
| Max. Voltage | 39.1 Volt |
| Max. System Voltage | 1000 Volt DC |
| Number Of Cells | 72 |
| Open Circuit Voltage | 48 Volt |
| Operating Temperature | -40 to 85 deg C |
| Output Cables | 4 sq-mm /1200 mm |
| Power Tolerance | 0 +4.99 Watt |
| Short Circuit Current | 9.96 Amp |
| Temperature Coefficient | 0.38%/deg C |
| Wattage | 375 Watt |
| Width | 992 mm |
