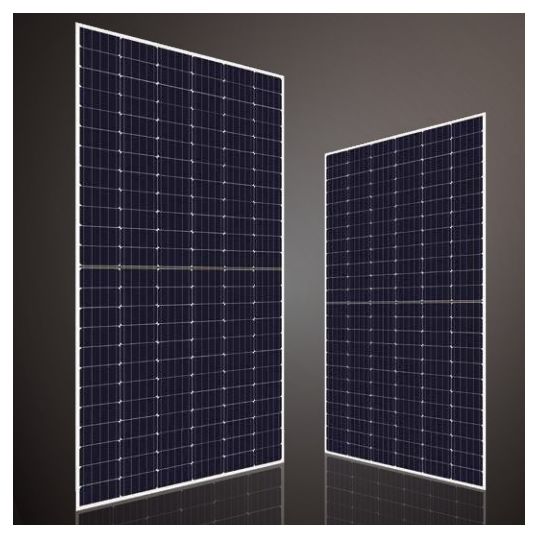

Seraphim Blade Solar Panel 380 Watt Mono-Crystalline PERC 144 Cells

chevron-left

Description

chevron-down
Solar Panel, Monocrystalline PERC, 144 Cells, 380 Watt, 41 Volt, 9.39 Amp, 48.5 Volt Open Circuit, 9.87 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1000 Volt DC Max. System Voltage, 19.44% Efficiency, 0, +4.99 Watt Power Tolerance, MC4 Compatible Connector, 4 mm, Portrait: 255 mm(+)/355 mm(-); Landscape:1200 mm Output Cables, IP68, 3 Diodes Junction Box, Anodized Aluminium Alloy Frame Construction, 3.2 mm AR Coating Tempered Glass, Low Iron Front Glass, 0.38%/deg C Temperature Coefficient, -40 to 85 deg C Operating Temperature, 1996 mm x 992 mm x 40 mm, 22.5 kg

Key Specifications

chevron-down
SKU
SERSRP-380-BMA
Brand
Seraphim
Range Name
Blade
Product Type
Solar Panels

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 26111600
UOM EA
Vendor Product SRP-380-BMA
Cell Type Monocrystalline
Connector Type MC4 Compatible
Efficiency 19.44%
Frame Construction Anodized Aluminium
Front Glass 3.2 mm AR Coating Tempered Glass/Low Iron
Height 40 mm
Item Weight 22.5 kg
Junction Box IP68/3 Diodes
Max. Current 9.39 Amp
Max. Fuse Current 20 Amp
Max. Voltage 41 Volt
Max. System Voltage 1000 Volt DC
Number Of Cells 144
Open Circuit Voltage 48.5 Volt
Operating Temperature -40 to 85 deg C
Output Cables 4 sq-mm/Portrait: 255 mm(+)/355 mm(-): Landscape:1200 mm
Power Tolerance 0 +4.99 Watt
Short Circuit Current 9.87 Amp
Temperature Coefficient 0.38%/deg C
Wattage 380 Watt
Width 992 mm
