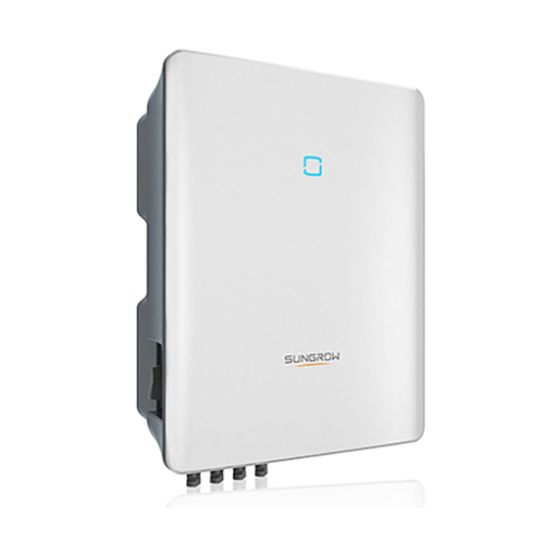

Sungrow Inverter New Generation 10kW 3 Phase 2 MPPT w/WiFi DC Switch
Description
Inverter, 3 Phase Phase, 10 kW DC Input, 180-1100 Volt DC Input, 160-1000 Volt DC MPPT Voltage Range, 37.5 Amp DC Max. Input, 2 MPPTs, 10000 Watt AC Output, 11000 VA AC Max. Apparent, 50/60 Hz, 0.985 Efficiency, 0.979 European Weighted Efficiency, Transformerless, 4000 mtr Max. Altitude, Wi-Fi DC Switch, LED Display, Natural Cooling Cooling, DC: MC4/AC: Plug and Play Connection, Wall Mounting Bracket Mounting, IP65, -25 to 60 deg C
Key Specifications
| SKU |
SGWSG10RT
|
|---|---|
| Brand |
Sungrow
|
| Range Name |
New Generation
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 9 |
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | SG10RT |
| AC Max. Apparent Power | 11000 VA |
| AC Operating Frequency | 50/60 Hz |
| AC Output Power | 10000 Watt |
| Connection Type | DC: MC4/AC: Plug and Play |
| Cooling Method | Natural Cooling |
| DC Input Power | 10 kW |
| DC Input Voltage | 180-1100 Volt |
| DC MPPT Voltage Range | 160-1000 Volt |
| DC Switch | Wi-Fi |
| Display Type | LED |
| Efficiency | 0.985 |
| European Weighted Efficiency | 0.979 |
| IP Rating | IP65 |
| Max. Operating Altitude | 4000 mtr |
| Mounting Method | Wall Mounting Bracket |
| Number of MPPTs | 2 |
| Operating Temperature | -25 to 60 deg C |
| Phase | 3 Phase |
| Topology | Transformerless |
