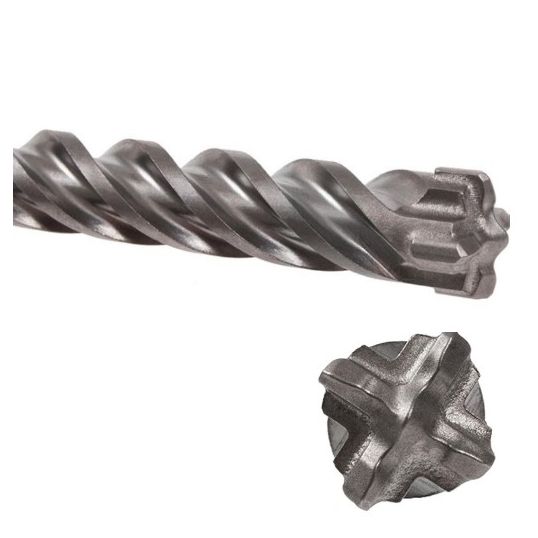

Alpha Hammer Drill Bit SDS+ German 4 Cut 10mm Work 100mm OAL 160mm Carbide

Description

Hammer Drill Bit 4 Cutter German, 10 mm, 100 mm Working Length, 160 mm Overall Length, SDS Plus Shank, Spiral Flute, Carbide Tip

Looking for something specific? Search with keywords to help filter your required specifications.

Features	Dynamic drilling ability with secondary cutters protecting the drill bit in the event of reinforcement collision The one-piece, solid carbide tip and patented reinforcing chamfering ensure low vibration and optimum drilling performance when drilling into reinforcing steel Thanks to optimum 4 x 90 deg symmentry, all four carbide cutting edges function evenly and do not seize up on hitting reinforcing steel Laterial support and maximum possible area of the interface between the carbide and steel body compensate for torsional forces Centring tip for straight forward spot drilling with pinpoint accuracy Four symmetrically functioning spiral ridges ensure low, uniform flute wear Optimised flute core strength ensures low vibration drilling performance and exceptional fracture resistance The high-volume flute geometry ensures the optimum removal of drilling dust 4 Cutter head prevents seizing when drilling through reinforcing steel Penetrates through steel deck plate eg Bondek and concrete in one easy process
Standard Pack Size	1
UNSPSC Class	23241600
UOM	EA
Vendor Product	SPZ100160
Bit Size	10 mm
Flute Type	Spiral
Overall Length	160 mm
Shank Type	SDS Plus
Tip Material	Carbide
Working Length	100 mm
