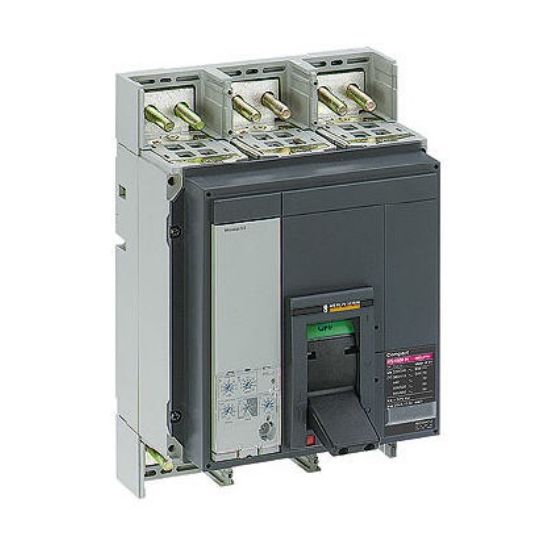

Schneider Moulded Case Circuit Breaker Electronic 3 Pole 70 kA 800 Amp
Description
Moulded Case Circuit Breaker, 690 Volt AC, 800 Amp, 50/60 Hz, Interrupt Capacity: 70 kA, Number of Poles: 3, Thermal Setting: 9 Amp Adjustable, Electronic Trip, Toggle, Rotary Handle Actuator, IP40 Conforming to IEC 60529, Fixed,-25 to 70 deg C, 327mm Height x 210mm Width x 147mm Depth
Key Specifications
| Barcode (EAN-13) |
3303430334675
|
|---|---|
| SKU |
SHN33467
|
| Brand |
Schneider
|
| Product Type |
MCCBs
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | 33467 |
| Actuator Type | Toggle/Rotary Handle |
| Current | 800 Amp |
| Depth | 147mm |
| Frequency | 50/60 Hz |
| Height | 327mm |
| Interrupt Capacity | 70 kA |
| Mounting Method | Fixed |
| Number Of Poles | 3 Pole |
| IP Rating | IP40 |
| Temperature | -25 to 70 deg C |
| Thermal Setting | 9 Amp Adjustable |
| Trip Type | Electronic |
| Voltage | 690 Volt |
| Width | 210mm |
