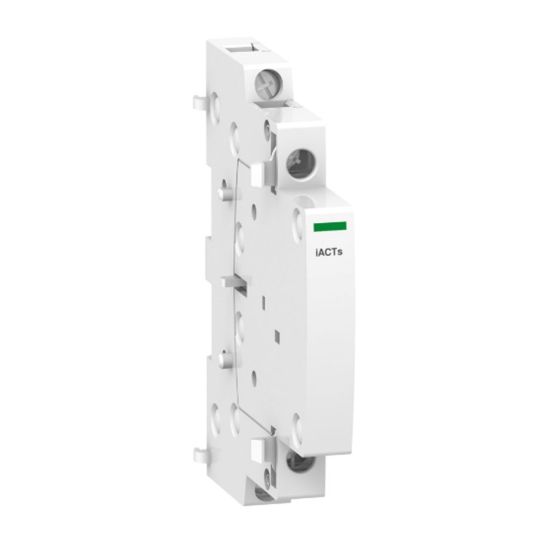

Schneider Remote Indication Auxiliary Contact 1NO+1NC for Acti9 iACTs

Name: Remote Indication Auxiliary Contact 1NO+1NC for Acti9 iACTs
SKU: SHNA9C15914
Availability: InStock

$Schneider\Schneider_SHNA9C15914.jpg$ $Schneider\Schneider_SHNA9C15914.jpg$

Description

Auxiliary Contact, Remote Indication, Control Circuit Voltage: 24-240 Volt AC, 24-130 Volt DC, Contact Configuration: 1NO + 1NC, 35 mm Symmetrical DIN Rail Mount, Terminal: Tunnel Type Terminal, IP20, White, -5 to 50 deg C, 81 mm Height, 9 mm Width, 68 mm Depth, For Use With: Acti 9 Electrical Circuit Control

Key Specifications

Barcode (EAN-13)	3606480088667
SKU	SHNA9C15914
Brand	Schneider
Product Type	Contactor Auxiliaries

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	A9C15914
Contact Configuration	1 Normally Opened & 1 Normally Closed
Depth	68 mm
For Use With	Acti 9 Electrical Circuit Control
Height	81 mm
Temperature	-5 to 50 deg C
Terminal Connection	Tunnel Type Terminal
Width	9 mm
