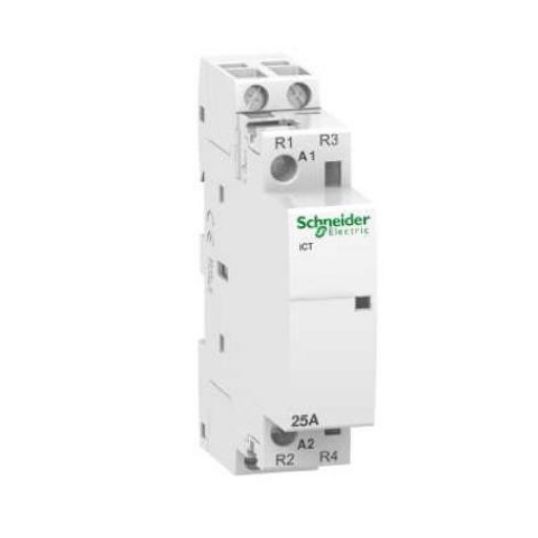

Schneider Contactor DIN 2 Pole AC3 25A 240V 2NC 1 Pole DIN Rail Mount
Description
Contactor, 230-240 Volt AC Coil Voltage, 1.2 kW AC3 AC3 Rating, 25 Amp AC3 AC3 Rating, 2 Normally Closed Configuration, 2 Pole, Tunnel Terminal, Clip-on Mounting, IP20, -5 to 60 deg C, 81 mm Height, 18 mm Width, 68.5 mm Depth
Key Specifications
| Barcode (EAN-13) |
3606480375095
|
|---|---|
| SKU |
SHNA9C20736
|
| Brand |
Schneider
|
| Range Name |
Acti 9 CT
|
| Product Type |
Contactors General
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | A9C20736 |
| AC3 Rating (kW) | 1.2 kW AC3 |
| AC3 Rating (Amps) | 25 Amp AC3 |
| Contact Configuration | 2 Normally Closed |
| Depth | 68.5 mm |
| Height | 81 mm |
| IP Rating | IP20 |
| Mounting Method | Clip-on |
| Number Of Poles | 2 Pole |
| Operating Coil Voltage | 230-240 Volt AC |
| Temperature | -5 to 60 deg C |
| Terminal Connection | Tunnel |
| Width | 18 mm |
